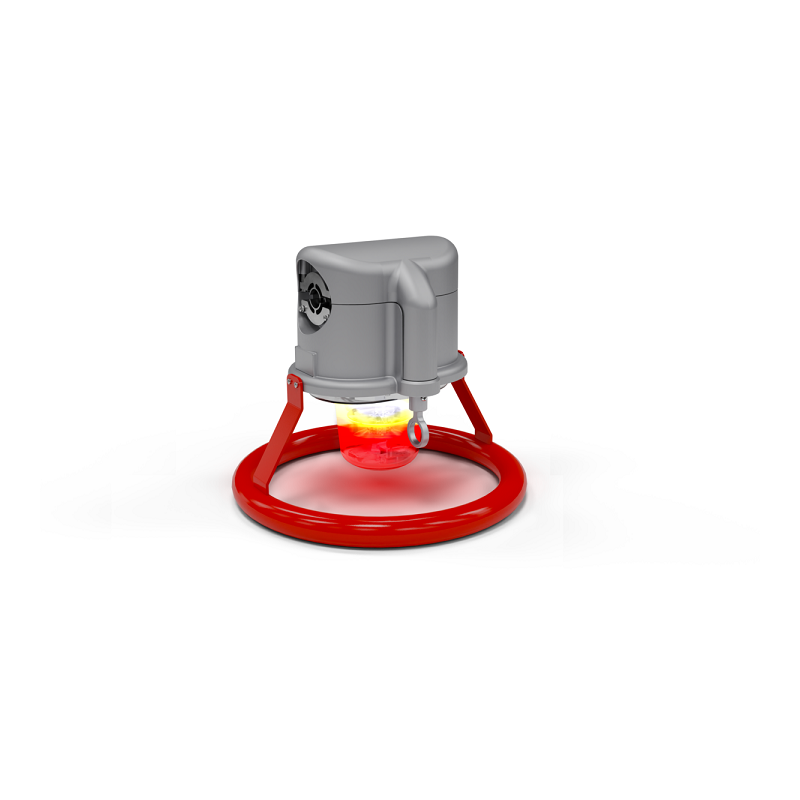

LIOL-PTL - Obstruction Light, Low Intensity Type B, Inductive AC power
Nhà sản xuất: Clampco Sistemi
|
Order Code |
LIOL-PTL |
|||
|---|---|---|---|---|
|
Lamp ID: |
SEGSPTL32 |
|||
|
Light Type: |
Low-Intensity, Type B |
|||
|
Typical use: |
Night time |
|||
|
Light source: |
LED |
|||
|
Type of beacon: |
Fixed |
|||
|
Colour: |
Red according to CIE Chromaticity Boundary |
|||
|
Light Intensity: |
>32.5 cd |
|||
|
HV cable diameter: |
From 15 to 50 mm ⌀ |
|||
|
HV line voltage: |
Up to 420 kV |
|||
|
HV line current: |
15 A – 1000 A (50 Hz) |
|||
|
Material of the upper shell: |
Die cast aluminum |
|||
|
Material of the transparent cap: |
Polycarbonate (UV stabilized) |
|||
|
Protection: |
IP66 |
|||
