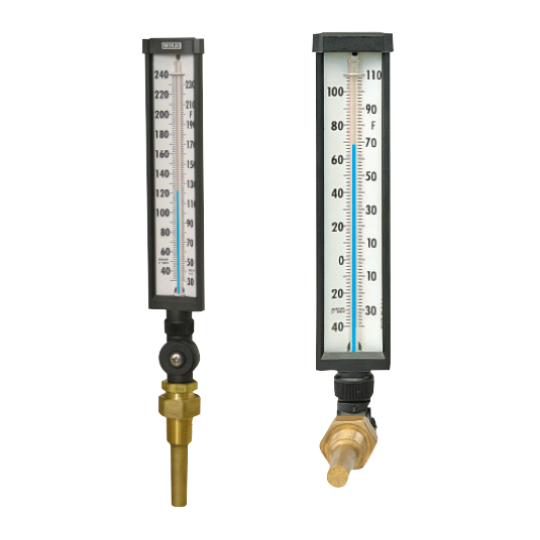

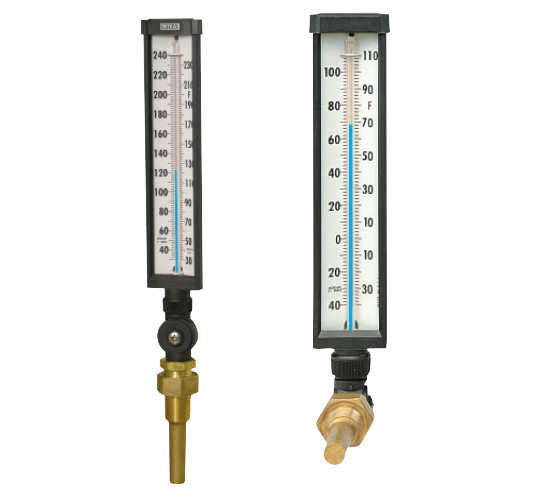

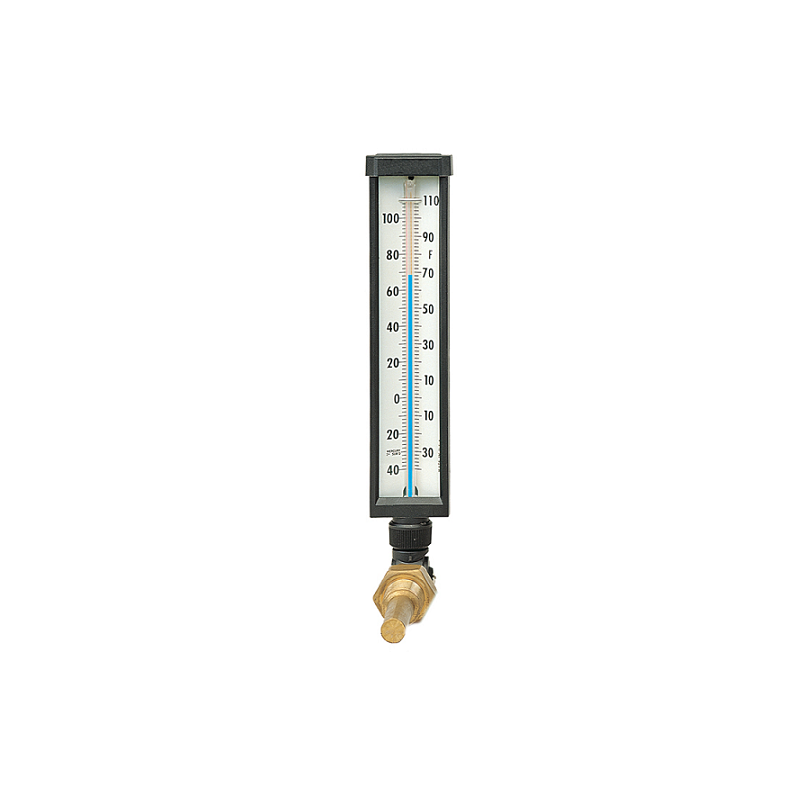

ĐỒNG HỒ ĐO NHIỆT ĐỘ WIKA TI.901 TI.701

Application
Process piping, HVAC/R, plumbing, water treatment, boilers, diesel engines and compressors
Size
9” (228.6 mm) - TI.901
7” (177.8 mm) - TI.701
Accuracy
+/- 1% of scale range
Standard Features
Case
Black, V-shaped molded GE Valox® 735 polyester
Connection
1 1/4"-18 Swivel Nut only; without thermowell
3/4" NPT brass thermowell; 3/4" NPT brass themowell with Lag; 3/4" NPT brass union hub, Duct flange
Adjustable Joint
Matching GE Valox® joint completely encloses capillary for thermal system Protection
Locking Device
Provides 360o positioning of thermometer case and stem
Stem
Aluminum tapered metal to metal contact.
Graphite conducting media between bulb chamber & glass
Stem Lengths
3-1/2", 6", 9", 12"
Tube & Capillary
Magnifying lens
Measuring Element
Blue non-mercury fill
Window
Glass
Scale
Permanently baked-on, bold black graduations are printed on white-coated aluminum
