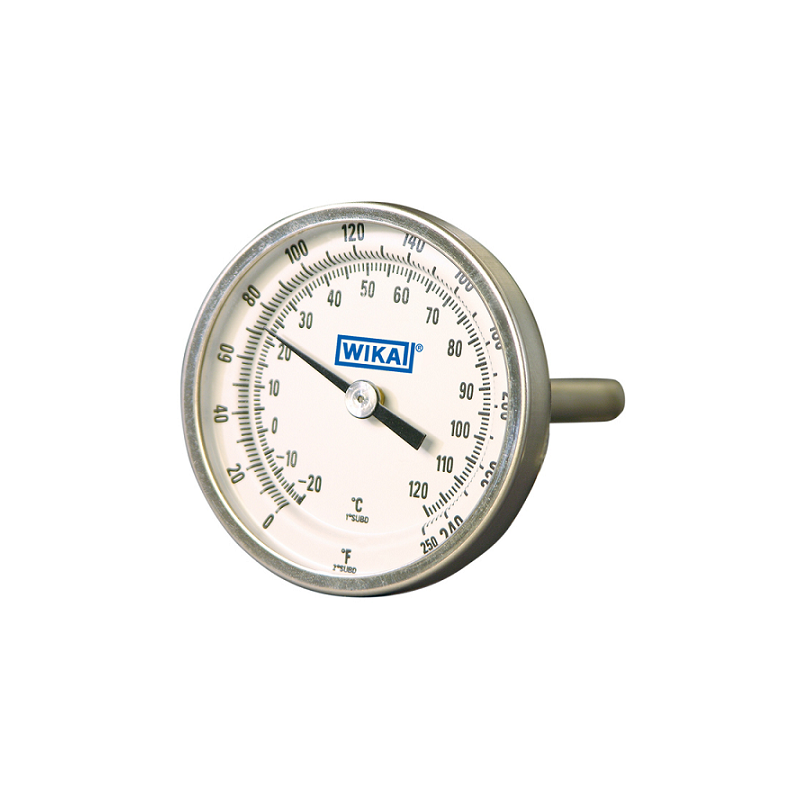

ĐỒNG HỒ ĐO NHIỆT ĐỘ WIKA TI20

Applications

* Laboratories

* OEM applications

Standard Features

Size:

      2” (68 mm) - Model T20

      1 3/4” (44.5mm) - Model T17

Accuracy Class: 1% full-scale value (ASME B40.3)

Min. / Max. Ranges: -100°F to 1000°F (and equivalent °C)

Working Range:

      Steady: full-scale value

      Short Time: 110% of full-scale value

Under / Over Range Protection: Temporary over or under range tolerance of 50% of scale up to 500°F (260°C)

Connection: Plain, 7/16” hex hub with no threads

Stem:

      304 SS, TIG welded at tip and case connection.

      0.150” diameter (0.142” on Model 2008)

Measuring Element: Bi-metal helix

Dial: White aluminum, flat, with black markings

Case: Material: 304 SS

Pointer: Black aluminum

Standard Scales:

      Single: °F or °C

      Dual: °F (outer) and °C (inner)

Window Gasket:

      Neprene

      Silicone (-100°F and over 550°F)

Window: Flat instrument glass

External Reset: Externally adjustable on plain connection only. No external adjustment available on threaded connections.

Dampening: Inert gel to minimize pointer oscillation

Order Options (min. order may apply)

* Special stem lengths
* Special threaded connections
* Special scales and dial markings
* Lexan window
* Sharp tip on end of stem
* Beaker clip

Warranty:
      Limited one year warranty as stated in WIKA’s
      Terms & Conditions of Sale
