ĐỒNG HỒ ĐO NHIỆT ĐỘ WIKA A2G61

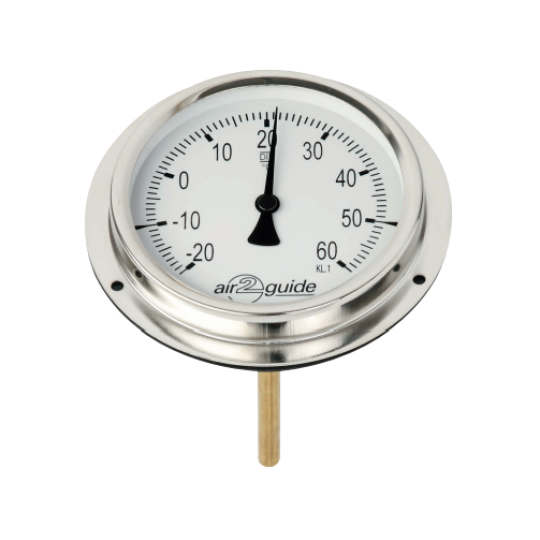

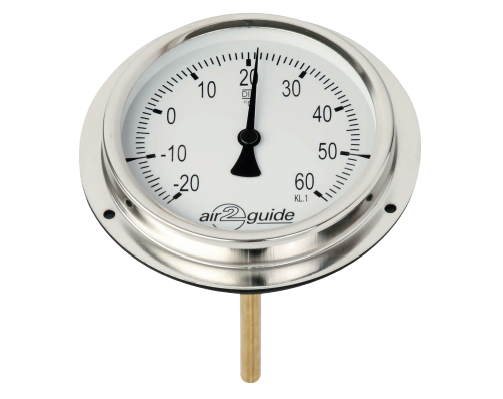

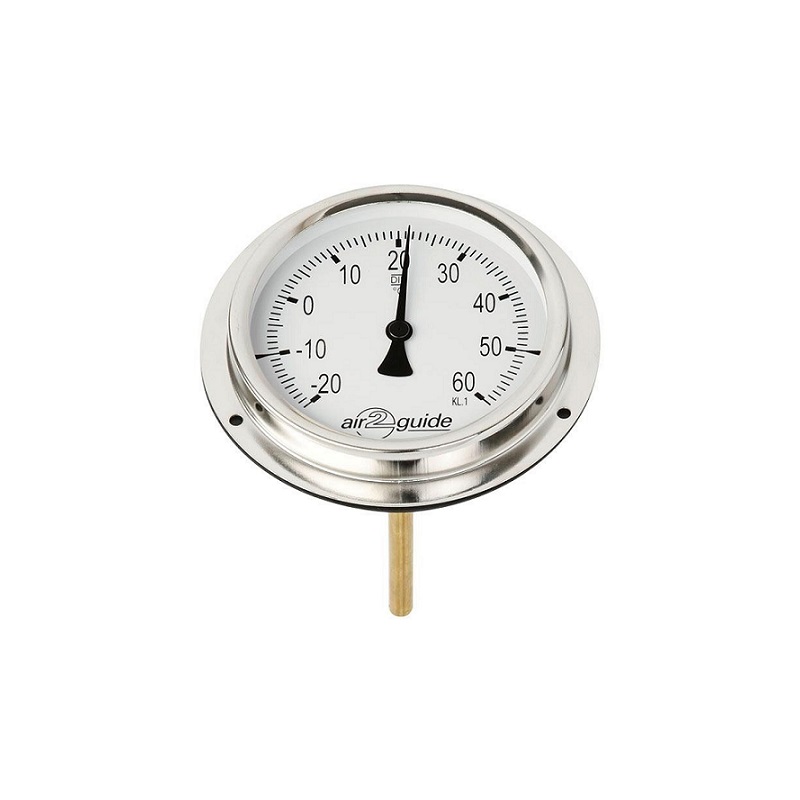

Analogue ventilation duct temperature sensor, model A2G-61

Nominal size: 100

Measuring element: Bimetal coil

Scale range: -20 ... +60 °C

Accuracy: Class 2 per EN 13190

Case: Aluminium

Front bezel: Aluminium, anodised, colourless

Window: Clear non-splintering plastic

Sensor sleeve: Brass, Ø 9 mm with NBR seal

Connection: form Front bezel with 3 mounting screws

Insertion length: 100, 160, 200, 300 mm

Zero adjustment At bottom of stem

8.  A43

Standard version
Measuring element
Bimetal coil
Nominal size
63, 80, 100
Working range
Full scale value
Case
Model A43.10: Aluminium
Model A43.20: Steel, galvanised
Model A43.30: Plastic, black
Connection location
Back mount (BM), centre
Process connection
Thermowell G ½ B, copper alloy
Stem
Aluminium
Thermowell
Copper alloy
Removable, friction fit
Permissible operating pressure at thermowell
Max. 6 bar
Dial
Plastic, white, black lettering
Pointer
Plastic, black
Window
NS 63: PS
NS 80, 100: SAN
Indication accuracy
Class 2 per EN 13190
Zero adjustment
At bottom of stem

Options
* Other scale ranges
* Slip-on bezel, nickel-plated
* Removable brass thermowell with retainer screw
