ĐỒNG HỒ ĐO NHIỆT ĐỘ DẠNG DÂY SCHMIERER MODEL GFU100

Basic design:

V 008 Range...

Measuring limits: - 80°C…+800°C

Accuracy: 1,0 % fsd

White dial, black lettering

Pointer deflection 270°

Pointer centric

Measuring element with gas-filling

V 050 Movement made of st. steel

V 085 Case: st. steel 304

Bayonet lock bezel: st. steel 304

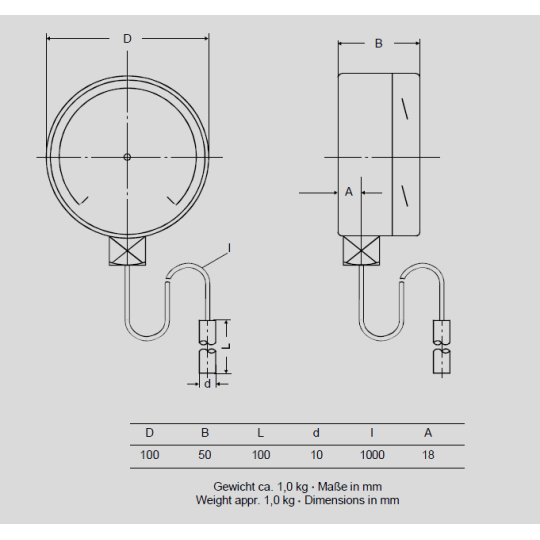

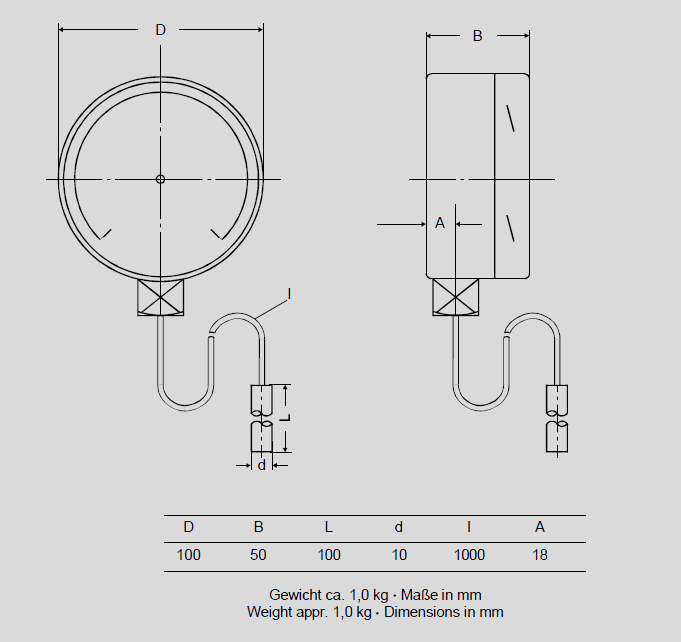

V 210 Stem length: 100 mm (Standard)

V 212 Stem diam.: 10 mm

Stem material: st. steel

V 230 Capillary line: 1 m

V 232 Capillary line material: st. steel

Variations: see back side

Variations:

V 027 Bezel and case polished

V 032 Red marking at...

V 034 Customer logo

V 038 Fine graduation

V 040 Special graduation

V 068 Adjustable pointer

V 069 Drag pointer on window

V 080 Front flange for panel mounting

V 081 Back flange for wall mounting

V 095 Glycerine filling

V 096 Insulating oil filling

V 119 Junction box

V 125 Bayonet lock bezel for variations

V 136 Contact device

V 141 Add-on transmitter

V 205 Back connection

V 210 Stem length...

V 212 Stem diam…

V 230 Capillary line length:…

V 261 Stem type…

Z 540 Instrument support

Additional variations: on request
