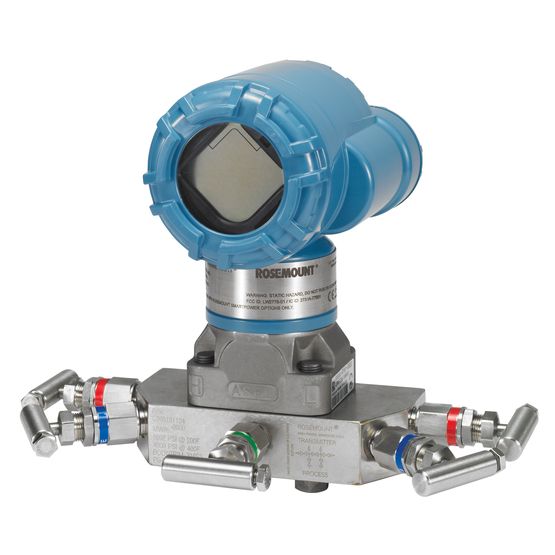

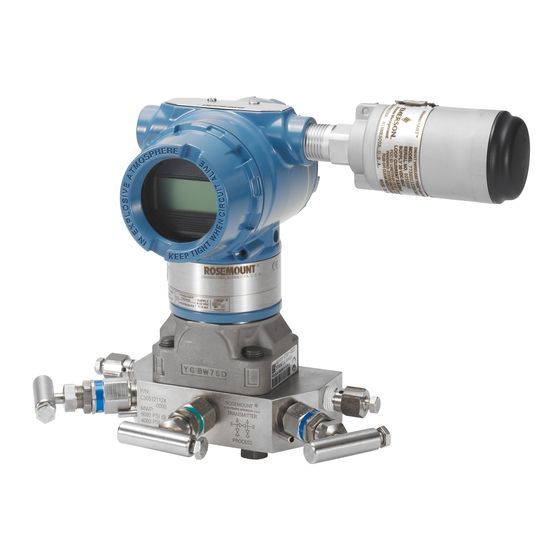

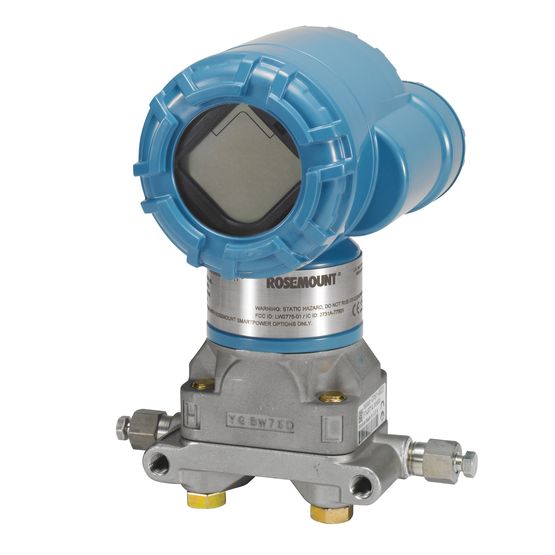

CẢM BIẾN CHÊNH ÁP ROSEMOUNT 3051 Wireless Differential

Specifications

Rangedown: Up to 150:1

Measurement Range: Up to 2000 psi (137,89 bar) differential

Output: Differential pressure, scaled variable

Communication Protocol: WirelessHART®

Process Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

Diagnostics: Basic Diagnostics, Loop Integrity

Certifications/Approvals: NSF, NACE, hazardous location, see full specs for complete list of certifications

Update Rate: 1 sec. to 60 min., user selectable

Power Module Life: Up to 10-year life, field replaceable (order separately)

Wireless Range: Internal antenna (225 m)

Features

• WirelessHART® technology is secure, cost-effective and delivers >99% data reliability

• Available pre-assembled to primary elements for an installation-ready flow solution that ensures optimal performance

• 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility

• Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation

• SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

• Easy installation enables quick instrumentation of measurement points without the cost of wiring
