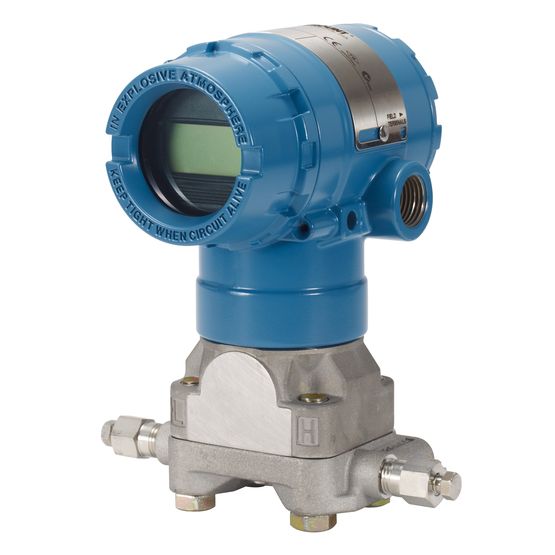

CẢM BIẾN CHÊNH ÁP ROSEMOUNT 2051 Differential

Specifications

Rangedown: Up To 100:1

Measurement Range: Up to 2000 psi (137,9 bar) differential

Output: Differential pressure, scaled variable

Communication Protocol: 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®

Process Wetted Material: 316L SST, Alloy C-276, Tantalum

Diagnostics: Basic Diagnostics

Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications

Features

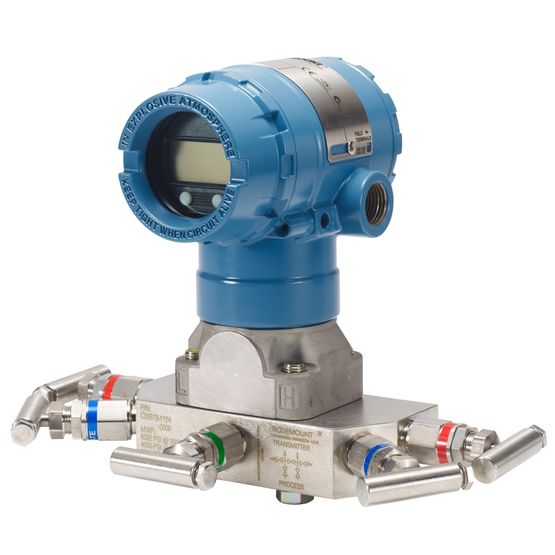

• Available pre-assembled to primary elements for an installation-ready flow solution that ensures reliable performance

• Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation

• Local operator interface offers easy-to-use menus and built-in configuration buttons for streamlined commissioning

• Performance up to 0.05% of span accuracy

• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
