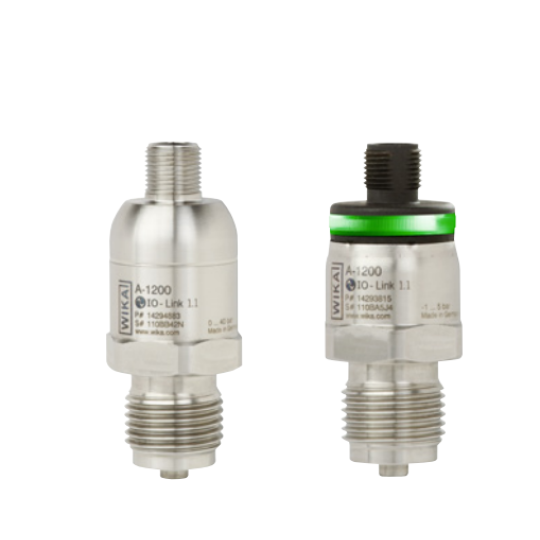

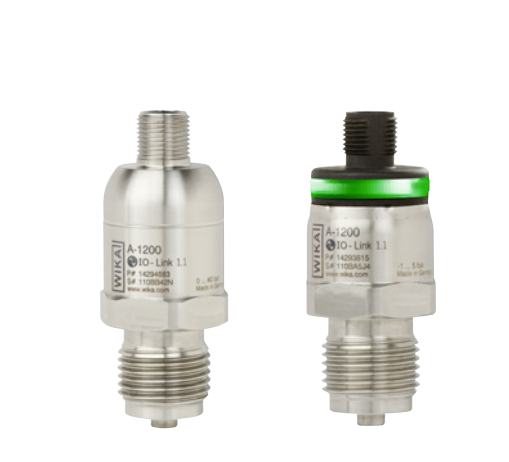

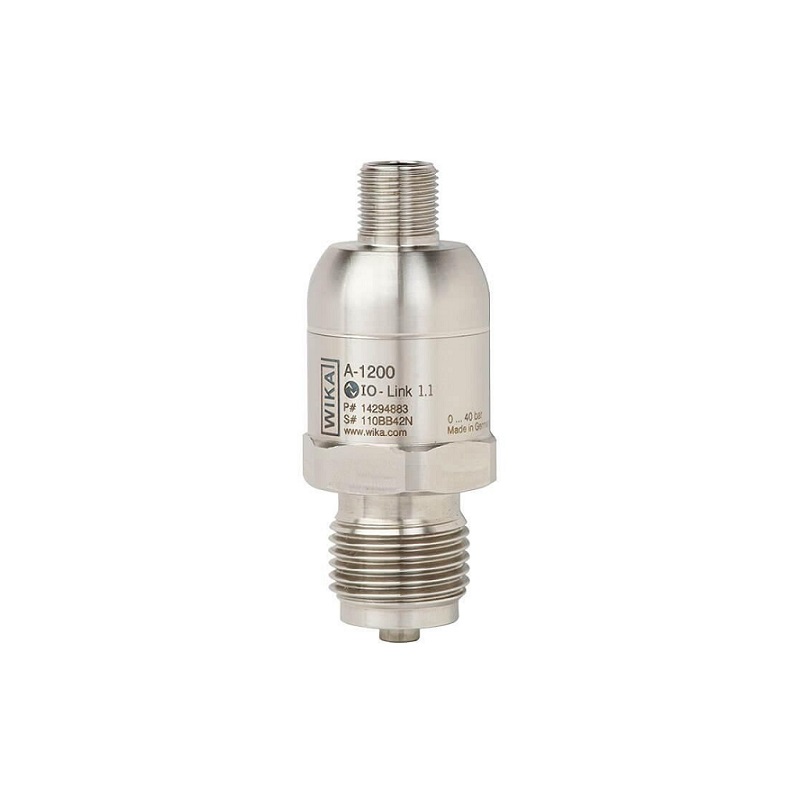

CẢM BIẾN ÁP SUẤT WIKA A-1200

Applications
* Machine tools
* Hydraulics and pneumatics
* Automation engineering
* Special-purpose machine building
Special features
* Industry 4.0-ready IO-Link sensor improves connectivity and diagnostics
* Designed for rough demands of up to 1,000 g shock and -40 ... +125 °C [-40 ... +257 °F]
* Optimised design makes OEM machine integration easier
* Multicolour 360° LED status display simplifies troubleshooting and localisation

* The given measuring ranges are also available in kg/cm², kPa and MPa.

* Special measuring ranges between 0 ... 0.4 and 0 ... 1,000 bar [0 ... 10 to 0 ... 15,000 psi] are available on request.

* Special measuring ranges have a reduced long-term stability and higher temperature errors.

Overload safety: The overload safety is based on the sensor element used. Dependent on the selected process connection and the sealing, restrictions in overload safety can result.

     Measuring range ≤ 600 bar [< 8,000 psi]: 2 times

      Measuring range > 1.000 bar [≥ 8,000 psi]: 1.5 times

Increased overload safety (option): With increased overload safety there are deviations in temperature error and long-term stability.

Vacuum-tight: Yes

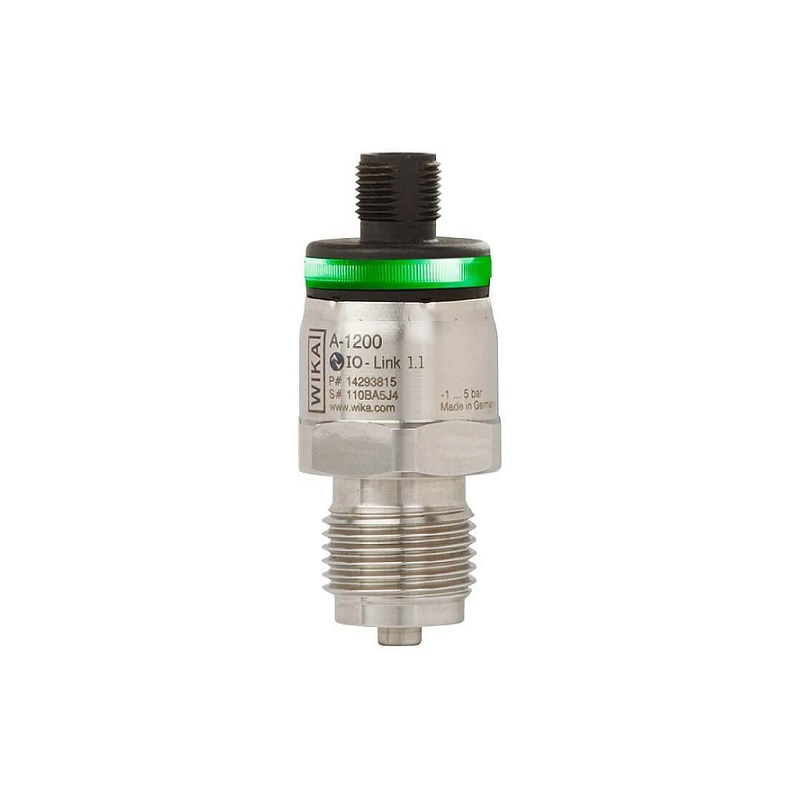

LED status display (option)

     Visibility: 360°

     Green: Operation

     Yellow: Warning

     Red: Error

IO-Link:

     Revision: 1.1

     Transmission rate: 38.4 kBaud (COM2)

     Min. cycle time: 2.3 ms

     Master port class: A

Adjustment of zero point offset: max. 3 % of span (via IO-Link)

Damping of switching outputs: 0 ms ... 65 s (adjustable via IO-Link)

Switch-on time: 1 s

Switching thresholds:

     Switch point 1 and switch point 2 are individually adjustable via IO-Link.

     Switch point 1 can be set to the prevailing pressure value using the teach function.

Switching functions

     Normally open, normally closed, window, hysteresis (adjustable via IO-Link)

     The switching function of switch point 1 can be set to normally closed or normally open using the teach function.

Switching voltage: Power supply - 1 V

Switching current: max. 250 mA, see derating curves

Response time of switching output: ≤ 5 ms

Service life: 100 million switching cycles

Voltage supply

Power supply: DC 10 ... 32 V

Current consumption: ≤ 25 mA

Total current consumption:

     ≤ 0.3 A incl. switching current (with one switching output)

     ≤ 0.6 A incl. switching current (with two switching outputs)

Reference conditions (per IEC 61298-1):

     Temperature: 15 ... 25 °C [59 ... 77 °F]

     Atmospheric pressure: 860 ... 1,060 mbar [12.5 ... 15.4 psi]

     Air humidity: 45 ... 75 % r. h.

Nominal position: Calibrated in vertical mounting position with process connection facing downwards.

Power supply: DC 24 V

Accuracy, switching output: ≤ ±1 % of span (option: ≤ ±0.5 % of span)

Long-term drift, switching output:

     ≤ ±0.1 %

     ≤ ±0.2 % for measuring ranges ≤ 0.69 bar [10 psi]

     ≤ ±0.26 % for increased overload safety

Switching current dependency

     With switching currents greater than 50 mA: ≤ ±0.05 % per 50 mA additional applied switching current

     Versions without teach function, LED status display and IO-Link 1.1: ≤ ±0.075 % per 50 mA additional applied switching current

Temperature error in rated temperature range:

     ≤ ±1.5 % of span

     ≤ ±2.5 % of span for increased overload safety

Temperature coefficients in rated temperature range:

     Mean TC zero point: ≤ ±0.16 % of span/10 K

     Mean TC span: ≤ ±0.16 % of span/10 K

Humidity: 45 ... 75 % r. h.

Vibration resistance: 25 g, 10 ... 2,000 Hz (IEC 60068-2-6, under resonance)

Shock resistance:

     100 g, 6 ms (IEC 60068-2-27, mechanical)

     1,000 g, 1 ms (IEC 60068-2-27, mechanical) 1)

Service life: 100 million load cycles

Ingress protection (per IEC 60529): see “Electrical connections”

Mounting position: as required
