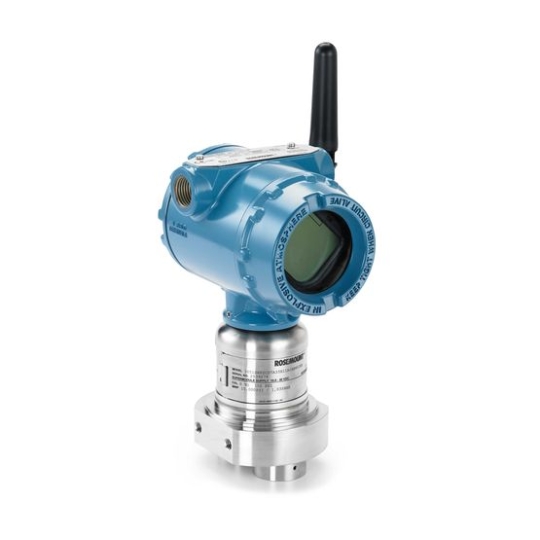

Cảm Biến Áp Suất Rosemount Model 3051S Wireless High Static DP

Specifications

Rangedown: Up to 150:1

Communication Protocol: WirelessHART®

Measurement Range: Up to 150 psi (623 bar) Differential with maximum working pressure up to 15000 psi (1034 bar)

Process Wetted Material: Alloy C-276

Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line

Certifications/Approvals: NACE, hazardous location, see full specs for complete list of certifications

Update Rate: 1 sec. to 60 min., user selectable

Power Module Life: Up to 10-year life, field replaceable (order separately)

Wireless Range: Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)

Features

• SuperModule design withstands static lines pressures of up to 15000 psi (1034 bar)
• WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
• Innovative, compact, coplanar platform reduces up to 60% of the weight versus today’s high pressure transmitters
• All-welded, hermetic design of the SuperModule platform resists overpressure and line pressure effects to ensure 0.055% accuracy
• Best-in-class wireless accuracy and stability for process automation
• Robust design, backed by 10-year stability, withstands the harshest production environments
• Easy installation enables quick instrumentation of measurement points without the cost of wiring
• SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
