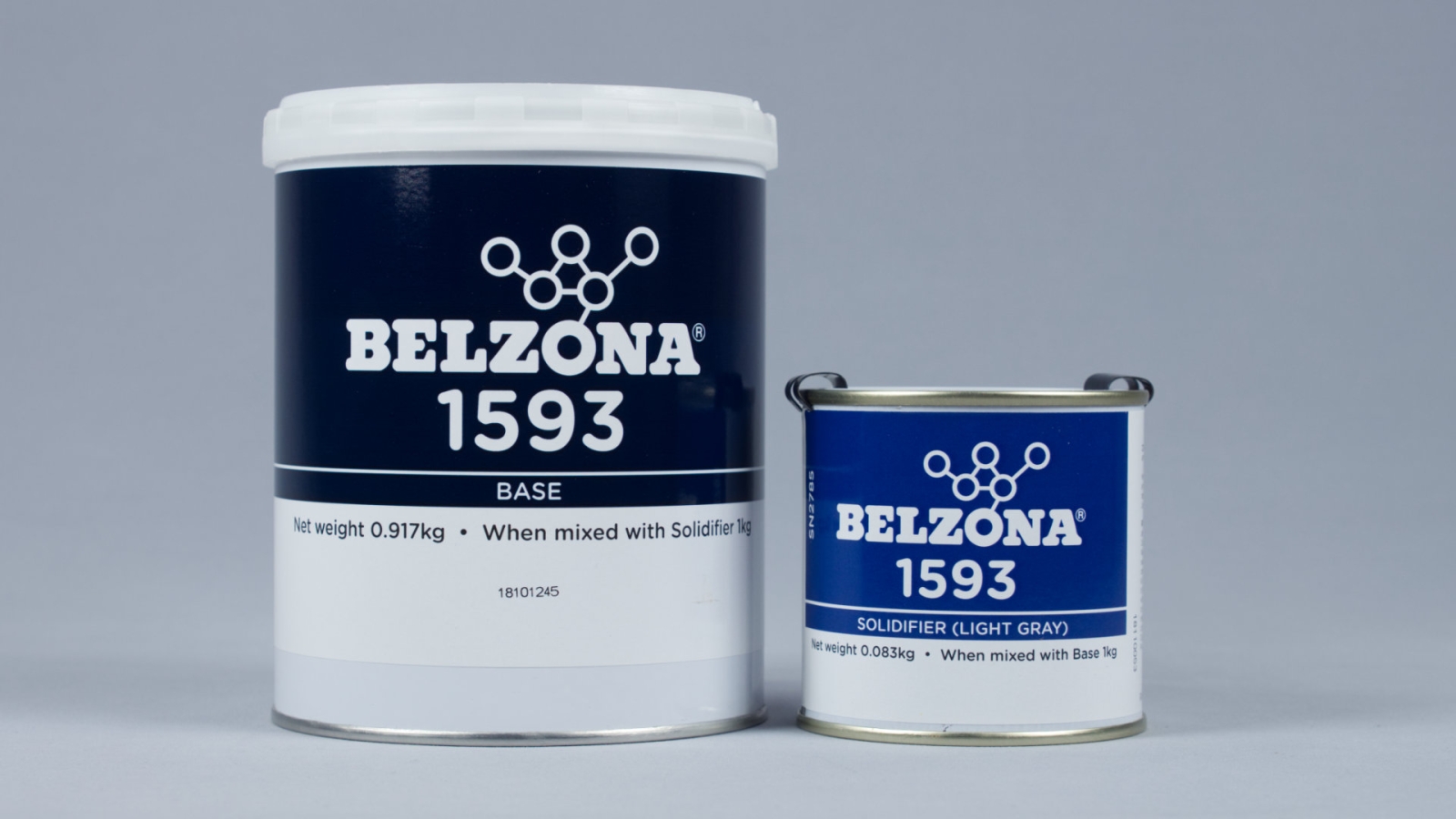

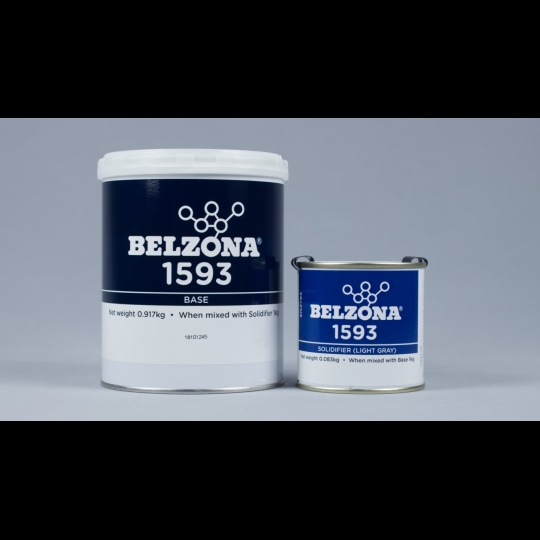

Belzona 1593

Belzona 1593

A 2-part hand-applied epoxy coating designed to provide long-term corrosion and chemical resistance to equipment operating in continuous immersion at temperatures up to 160°C (320°F). This coating has a long overcoat window and its cold curing mechanism with full in service cure reduces downtime and ensures rapid return of equipment to service.

This solvent-free coating is easy to mix and apply without the need for specialist tools, ensuring a simple and  safe application in confined areas.

Key benefits:

• Outstanding corrosion protection of high temperature equipment, suitable for continuous immersion in water and hydrocarbon mixtures up to 160°C (320°F)

• Excellent chemical resistance against a wide range of chemicals including hydrocarbons and amines

• 2-coat application without the need for flash blasting between coats

• Very light colours allowing easy inspection in dark vessels

• Application and cure at room temperature - no hot work involved

• Solvent-free material allowing it to be safely applied in confined areas

• Reduces downtime due to its innovative post-cure mechanism activated at service temperatures - no separate post-cure needed

• Withstands steam-out process up to 210°C (410°F) and rapid depressurisation

• Excellent adhesion to metal surfaces and high retention of adhesion at elevated temperatures

Applications for Belzona 1593 include:

• High temperature epoxy coating for oil and gas production equipment such as separators, flare knock-out vessels and evaporators operating under immersion

• Corrosion protection against a variety of chemicals in high temperature equipment including boiler vessels, condensers and heat exchangers
