Order Code |
BEACON-M1_23S |
|
---|---|---|
Lamp ID: |
SEGS23H2K |
|
Light Type: |

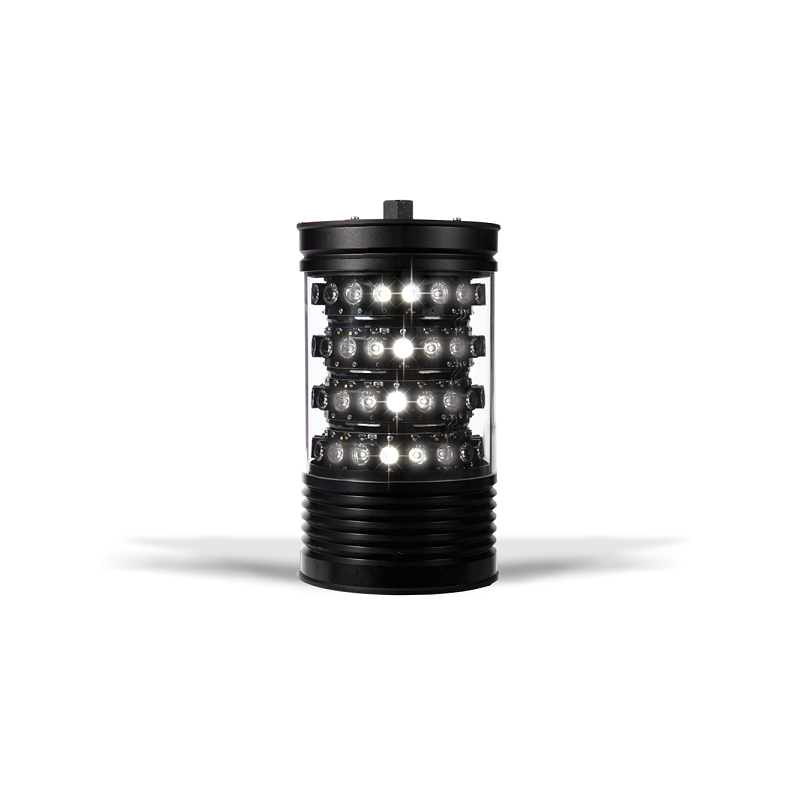

Heliport Beacon |
|
Light source: |
LED |
|
Type of beacon: |
Flashing (H morse code) |
|
Colour: |
White according to CIE Chromaticity Boundary |
|
Light Intensity: |
> 2.500 cd |
|
Input voltage: |
110 – 230 Vac |
|
Average power consumption: |
60 W @ duty cycle 20% |
|
Peak power consumption: |
300 W |
|
|
Beacon Unit |
Sub Control Unit |
Material of the body: |
Anodized aluminum |
Stainless Steel AISI304 |
Material of the transparent cap: |
Polycarbonate |
– |
