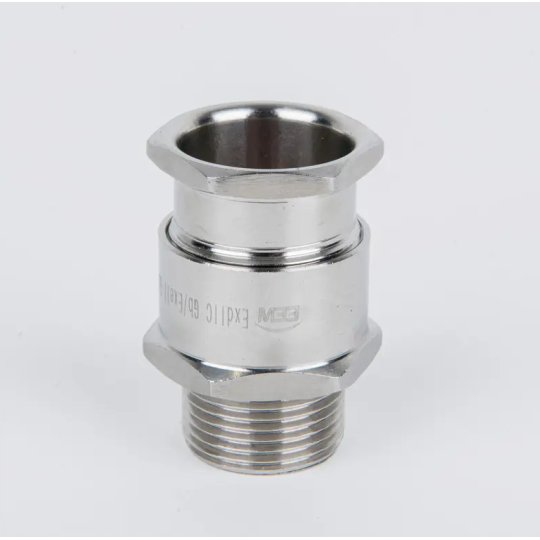

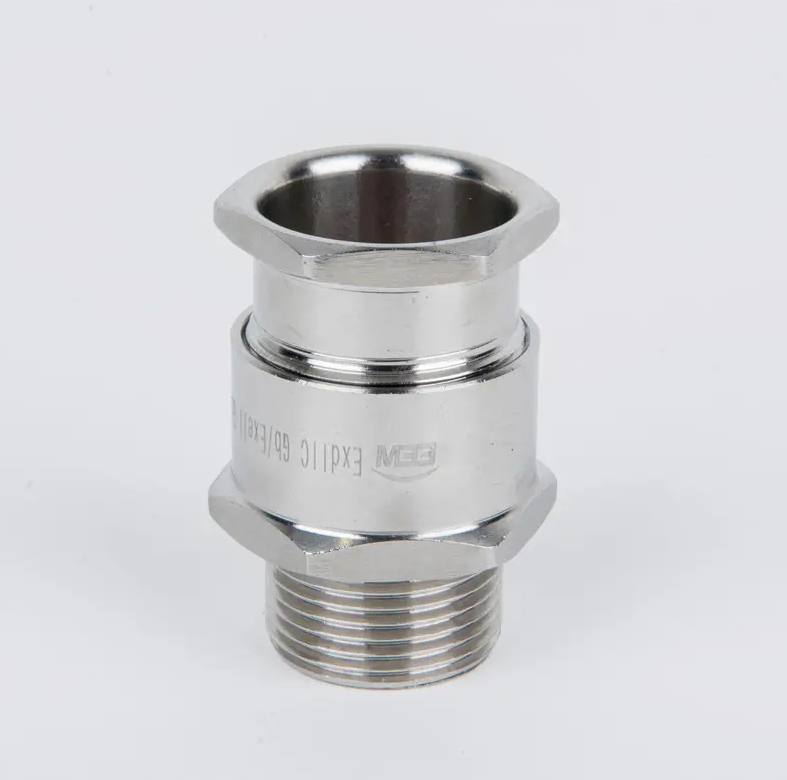

BDM Series Explosion-proof Cable Gland

Suitable for using in IIA,IIB,IIC Explosion hazardous gas zone1 and zone2.

Combustible dust IIIA,IIIB,IIIC zone 21 and zone 22

IP code: IP66

Ex-Mark: Ex db IIC Gb, Ex eb IIC Gb,Ex tb IIIC Db.

I II 2G Ex db IIC Gb, II 2D Ex tb IIIC Db

ATEX Cert. No.: CML 17 ATEX 1026X

IECEx Cert. No.: IECEx CML 17.0014X

EAC CU-TR Cert. No.:RU C-CN.AЖ58.B.00320/20

Compliance Standard

IEC 60079-0,IEC 60079-1,IEC 60079-7,IEC 60079-31. EN60079-0,EN60079-1,EN60079-7,EN60079-31

Selection Table

BDM-I Unarmored

It is made of Carbon steel,Brass or stainless steel. The Displacement Type Cable Glands are Applicable for Umored Cable with Single Sealed.

BDM-II/A Armored

It is made of Carbon steel, Brass or stainless steel. The Displacement Type Cable Glands are Applicable for Armored Cable with single sealed.

BDM-II/B

It is made of Carbon steel, Brass or stainless steel. The Displacement Type Cable Glands are Applicable for Armored Cable with single sealed.

BDM-III/A Armored

It is made of Carbon steel, Brass or stainless steel. The Displacement Type Cable Glands are Applicable for Armored Cable with Double sealed.

BDM-III/B Armored

It is made of Carbon steel, Brass or stainless steel. The Displacement Type Cable Glands are Applicable for Armored Cable with single sealed.
