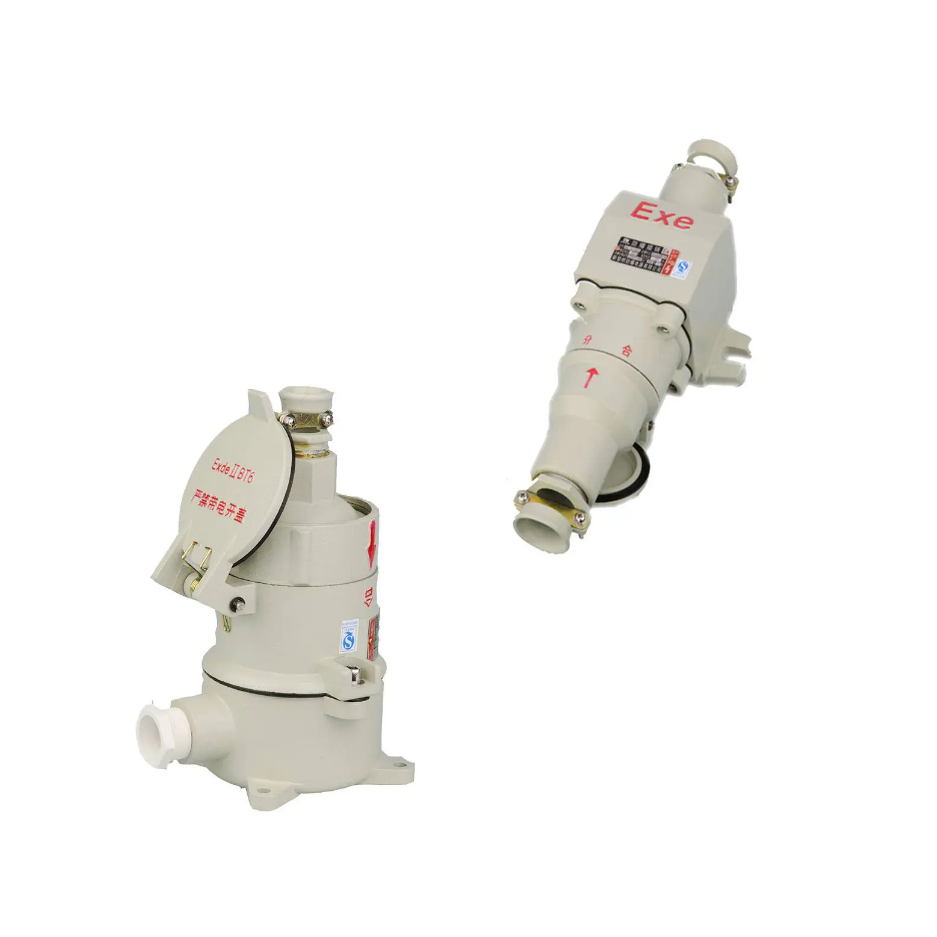

AC Series Explosion Proof Plug And Receptacles

Application

Designed for Explosive Atmospheres Zone1 and Zone2;

Designed for Combustible Dust Zone21 and Zone22;

Designed for IIA, IIB and IIC Groups Explosive Atmospheres;

Designed for Temperature Classifications T1~T6;

Designed for Explosive Hazardous Locations Such as Oil Refinery, Storage, Chemical, Pharmaceuticals, Military Industries Etc.

Ordering References

Rain Cover Should be Equipped If Used Outdoors.

If Need Explosion Proof Plug and Receptacles, 16A, 220V, Straight Type, the Model Shall be “AC-16/220Z.”

Features

Enclosure is Die Casted of Aluminum Alloy with High Voltage Electrostatic Powder Coated Surface After Shot Blasting;

With Interlock Device, Plug Can be Pulled Out Only When Switch is Cut Off Inside the Socket;

Compact Structure and Good Appearance, Easy to Maintain;

Steel Pipe or Cable Wiring.

Selection Table

AC-16 Technical Parameters

Compliance with: GB 3836.1, GB 3836.2, GB 3836.3, GB12476.1, GB12476.5, IEC60079-0, IEC60079-1, IEC60079-7, IEC61241-0, IEC61241-1;

Explosion Protection: Ex d e IIC T6, Ex tD A21 IP65 T80℃;

Rated Voltage: AC220/380V;

Poles: 1P+N+PE, 3P+PE;

Rated Current: 16A;

Using Sorts: AC-1, AC-3;

Ingress Protection: IP65;

Corrosion Resistance: WF1;

Cable Entries: G3/4″;

Cable Outer Diameters: Φ9mm~Φ14mm, Φ14mm~Φ25mm.

AC-32 Technical Parameters

Compliance with: GB 3836.1, GB 3836.2, GB 3836.3, GB12476.1, GB12476.5, IEC60079-0, IEC60079-1, EC60079-7, IEC61241-0, IEC61241-1;

Explosion Protection: Ex d e IIC T6 Gb, Ex tD A21 IP65 T80℃

Rated Voltage: AC220/380V;

Poles: 1P+N+PE, 3P+PE;

Rated Current: 32A;

Using Sorts: AC-1, AC-3;

Ingress Protection: IP65;

Corrosion Resistance: WF1;

Cable Entries: G11/4‘’;

Cable Outer Diameters: Φ9mm~Φ14mm, Φ14mm~Φ25mm.
