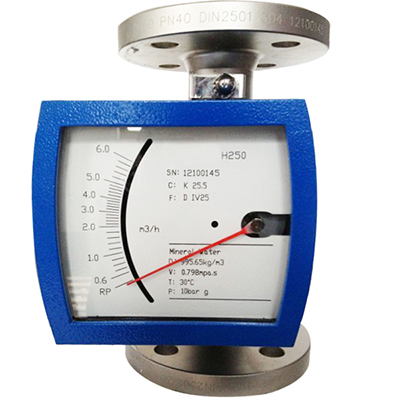

DH250 Metal tube rotameter

Specifications

Meter Model: DH250 Series

Flow range:

- Water 2.5 l/h to 200 m3/h

- Air 0.07 to 4500m3/h (201.013bar)

Flow span: 10:1

Accuracy:

- Standard accuracy: 1.5% High accuracy: 1.0%

- Standard accuracy (PTFE-Liner): 2.5% High accuracy (PTFE-Liner): 1.5%

Connections:

- Flange connection

- Standard: DIN2501DN15-DN200 ）

- Special: DIN2512DN15-DN200

- ANSI1/2-8

- The GB JIS users needs

- Threaded fittings DIN11851SC40-SC80[1-1/2-3 〃]

- According to demands of users

Steam Jacket Connections:

- Internal threads 1/2

- NPT

- Flange connection DN15 PN40 DIN2501

- According to demands of users

Max.Allow. pressure: 250bar

Temperature range

- Fluid temperature:

-40 to+200Standard type

-20 to+125PTFE-Liner type

-40 to+400High temperature type

- Ambient temperature: -40 to+70

Materials:

- SS304、SS304L、SS316、SS316L

- PTFE-Liner

- Hastelloy C

- Ti

- According to demands of users

Protection class: IP67

Supply power: 12-28V DCtwo-wire systembattery power
