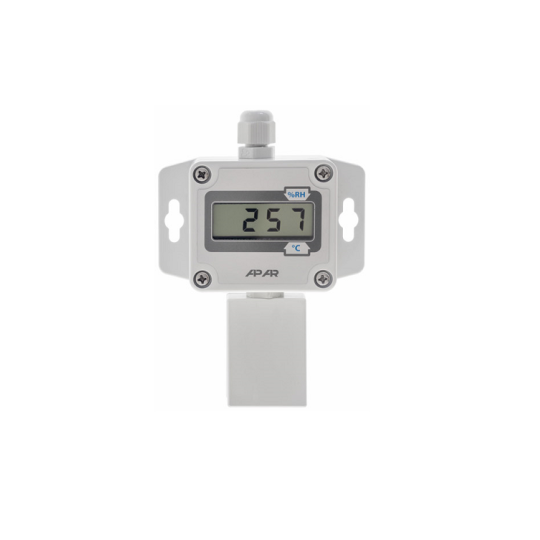

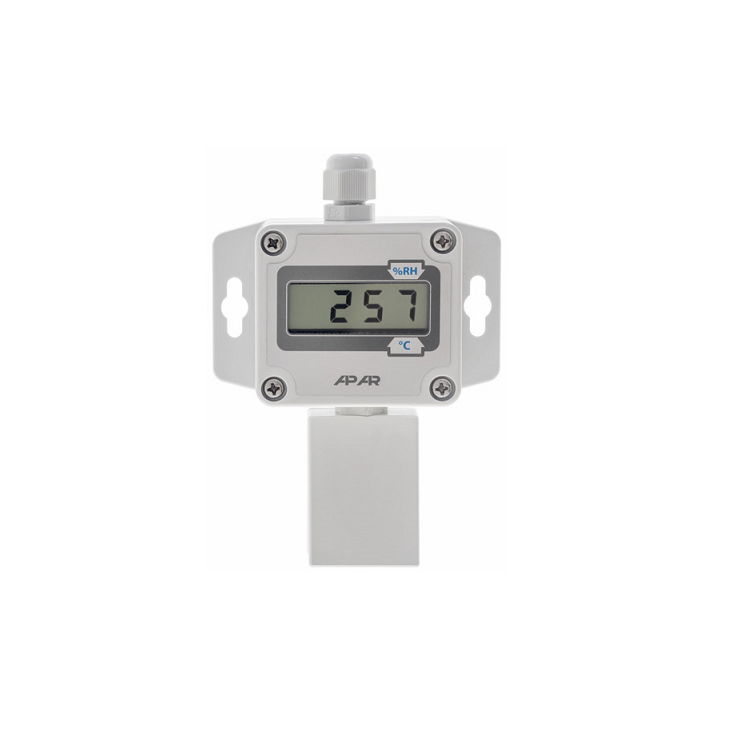

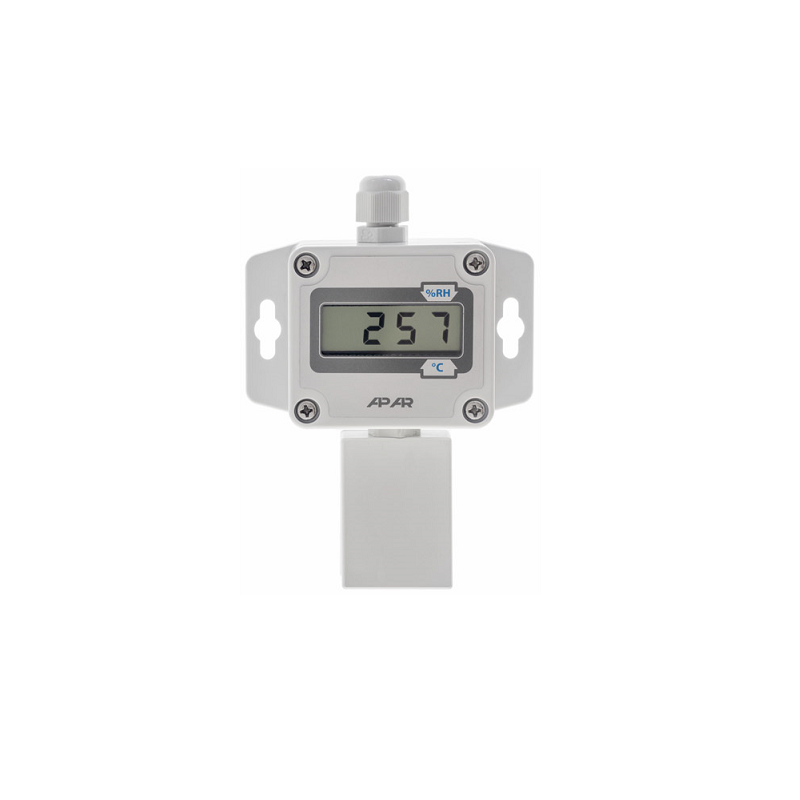

* High-quality digital sensor for carbon dioxide (CO2), relative humidity (RH) and temperature (T) in close rooms to improve the comfort and well-being of people staying there
* Application in many elds and applictions (for industrial, office and residential environments, inside buildings, e.g. HVAC installations, storage, production, transport, food sector, pharmacy, medicine, gardening, laboratories and others
* A probe integrated with the enclosure, external or on a stainless steel pipe
* A probe integrated with the housing or external
* Current output 0/4 ÷ 20 mA, voltage 0/2 ÷ 10 V or RS485 interface
* Programmable processing ranges for measured values
* An LCD display with a keypad (option) that enables configuration of parameters
* Configuration of parameters with the keypad, through the RS485 or PRG port (programmer AR956 or AR955) and free ARsoft-CFG software that enables quick setting and copying of all configuration parameters
* High stability of measurements
* Protection rating IP65 provided by the enclosure which improves reliability of operation thanks to high resistance to penetration of water and dust and surface condensation of steam inside of the device, an IP20 probe
* Calculating the dew / frost point [°C], absolute humidity [g/m3] (calculations for atmospheric pressure 1013hPa) with the possibility of combining the calculated values with the analogue output
Technical Data
Sensor SCD30, an ABS cover (slot width 3mm)
Measurement range 0÷10000 ppm, 0÷95 %RH, 0÷50 °C
Measurement CO2 typically ±(30ppm + 3%) in the entire measurement range
acurancy humidity typically ±3 %RH in the entire measurement range temperature typically ±(0.4°C + 0.023 × (T [°C] – 25°C))
Additional errors repeatability ±10 ppm, ±0,1 %RH, ±0,1 °C long-term stability < 0,25 %RH / year, < 0.03 °C / year temp erature stability ± 2.5 ppm / °C in temperature 0 ÷50 °C
Measurement period 2÷60s
Response time (63%) 10s for measure humidity nad temperature, 20s for measure O2 (for air w > 3,6 km/h, 1m/s)
Display (optional) LCD, 4 digits 10 mm
Outputs current (active) 2 x 0/4÷20 mA, load R [Ω]< (Usup - 5)V / 22 mA O voltage 2 x 0/2÷10 V, load I<4,5 mA (R> 2,5 kΩ) O w digital (not separated) RS485, MODBUS-RTU (slave)
Power supply for the 0/4÷20 mA 12÷36 Vdc , current consumption: max. ~45 mA + (IO1+IO2) for the 0/2÷10 V 18÷30 Vdc, current consumption wtihout load outputs: max.~35 mA version with RS485 9÷28 Vac lub 9÷36 Vdc, current consumption: max. ~60 mA
Operating conditions air and neutral gases, do not pour water on the measurement probe temperature and humidity 0÷50 °C, <95 %RH ((no condensation)
Installation Data
Dimensions 58x94x35 mm (probe: 36x50x20 mm)
Material polycarbonate (probe sheath: ABS)
