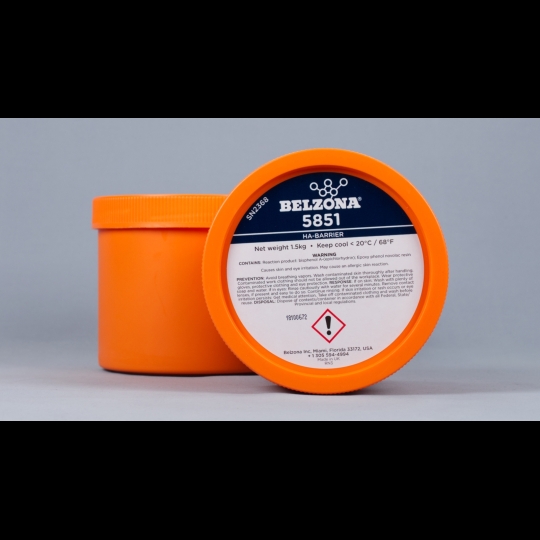

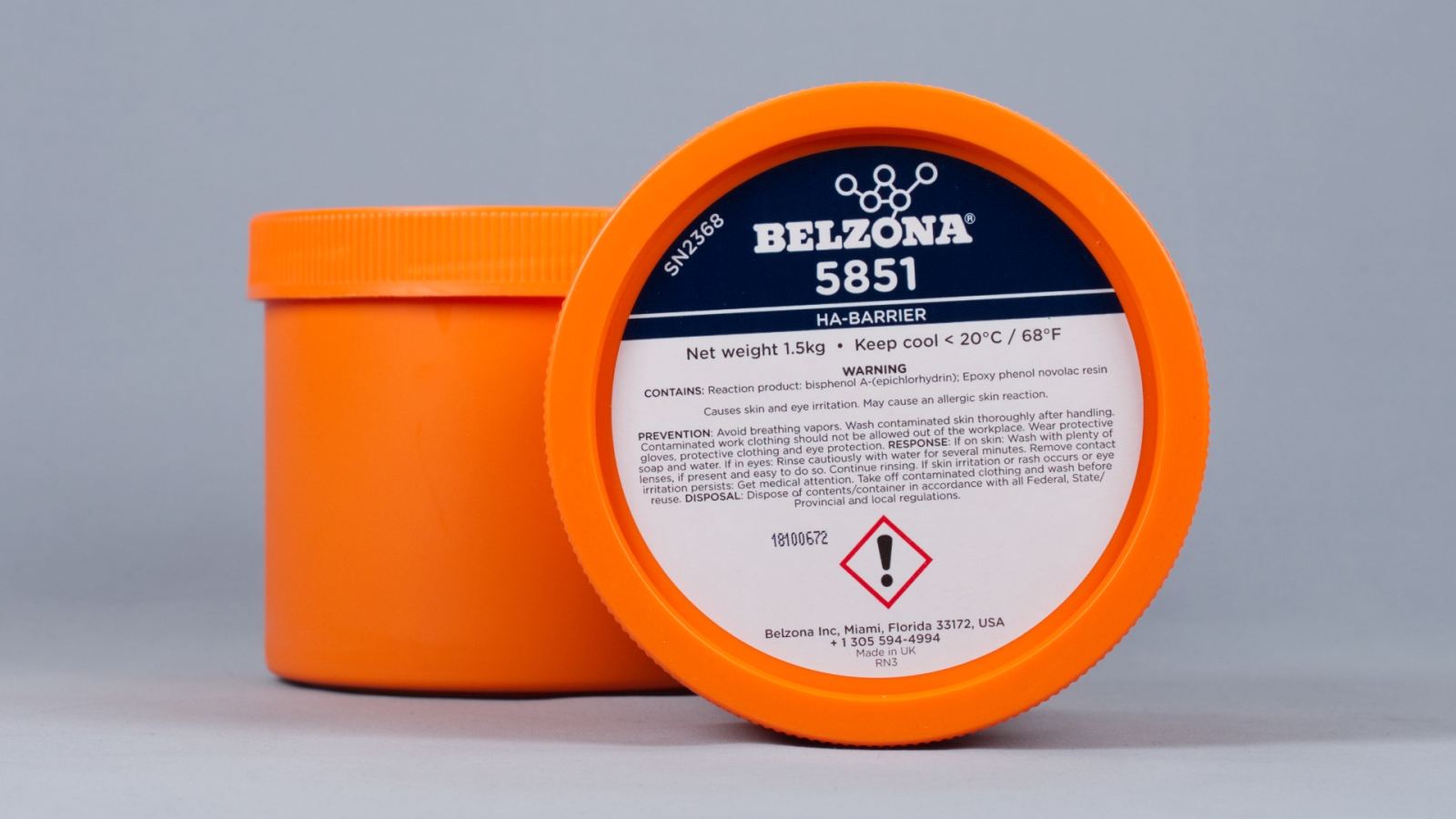

Belzona 5851 (HA-Barrier)

A solvent-free, single-component epoxy coating, which cures in contact with hot surfaces and is designed to prevent or protect metal from corrosion under insulation (CUI). Belzona 5851 (HA-Barrier) can be easily applied by brush and does not require any weighing or mixing.

This heat-activated material can be applied directly onto hot surfaces (70-150°C / 158-302°F) with minimal surface preparation, avoiding production downtime. Once cured, it provides outstanding corrosion protection. Also available is Belzona 1251 (HA-Barrier), a heat-activated epoxy repair composite which can be used in fill pitting and bond equipment among other applications.

Key benefits:

• In-situ application to live equipment operating at high temperature with minimal surface preparation

• Single pack system, no weighing or mixing required

• Reduced health and safety risks as it is solvent-free and no hot work is required

• Fast cure  allowing equipment to be re-insulated with minimum delay

• Excellent corrosion protection

• Good chemical resistance against a wide range of chemicals

• Excellent adhesion to (even to manually prepared) metals including stainless steel, carbon steel, aluminium, brass and copper

• Thermally stable up to 150°C (302°F) in dry conditions

Applications for Belzona 5851 (HA-Barrier) include:

• Prevention of corrosion under insulation (CUI)

• Long-term corrosion protection of hot pipework and process equipment

• In-situ external coating of process vessels during service operating at high temperature avoiding production downtime
