SBT Series

Introduction

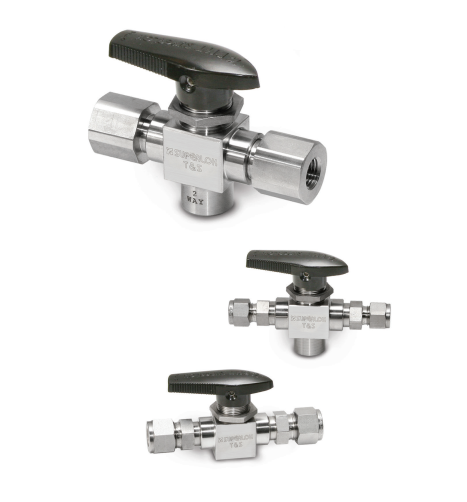

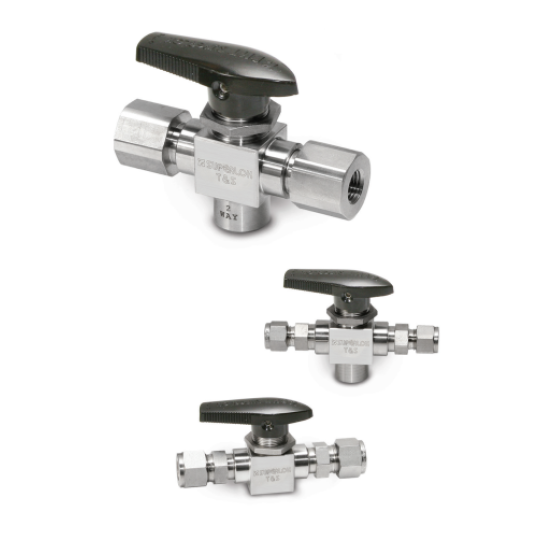

SUPERLOK High Pressure Ball Valves provide reliable shut-off or switching functions.

The upper and lower trunnion bearings enhance the resistance of the trunnions against seizure, and increase the valve life in extreme applications.

The compact and rugged design employs spring-loaded seats for high cycle life and low operating torques at pressure up to 10,000psig (689psi).

Features

- PEEK trunnion bearings for longer cycle life

- Two-way and Three-way designs

- Blow-out resistant two-piece ball/stem

- Low operating torque

- Panel mountable to 9.7mm thickness

- Handle indicates direction of flow

- Positive handles stops

- 100% factory tested

- Compact, maximum flow design

Specifications

- Temperature rating: 0 to 450°F (-17 to 232°C)

- Body material: stainless steel

- Body configurations: Two-way and Three-way

- Pressure rating: 6000psig (414bar) with PCTFE Seats

- Port Connections: 1/8” to 1/2” and 6mm to 12mm

SUPERLOK Tube Fitting or Female NPT end connection
