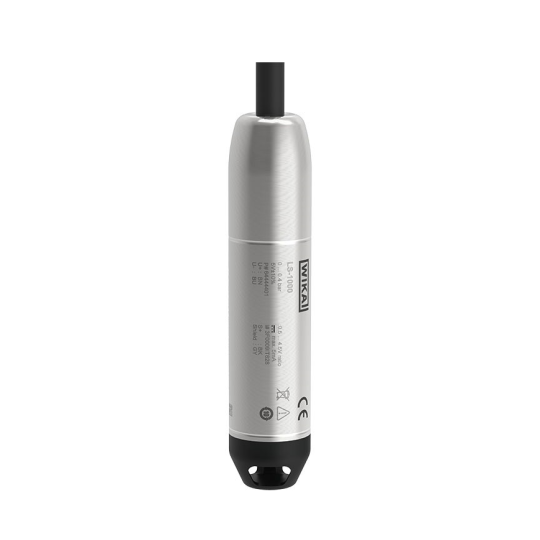

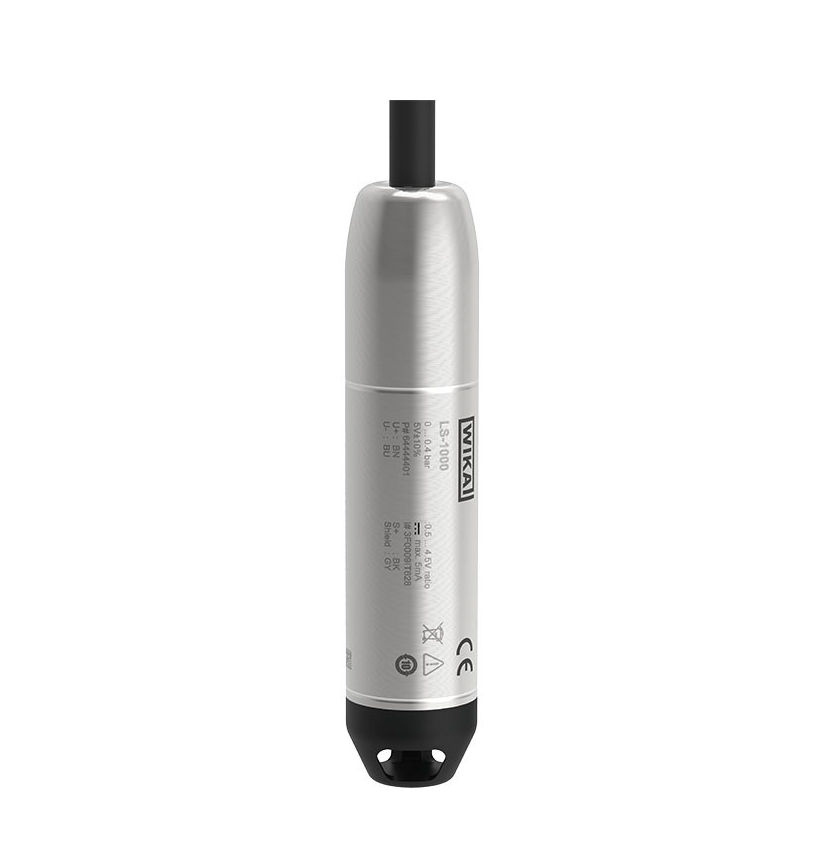

Submersible pressure sensor WIKA Model LS-1000

Applications

• Sewage lifting stations

• AdBlue tanks

• Pumping stations

Special Features

• Hydrostatic levels 1 ... 10 m [3.28 ... 32.81 ft]

• Permanently leak-tight thanks to special materials and sophisticated design

• Low total cost of ownership due to the highest reliability and durability

Description

The model LS-1000 submersible pressure sensor continuously measures the level of liquid media in industrial environments. It records the level hydrostatically from 1 to 10 m. Optimum long-term stability ensures precise measured data and minimal signal drift. Hermetic leak tightness is ensured by the robust design and a specially developed cable with integrated strain relief. Due to its attractive pricing, the LS-1000 submersible pressure sensor is the ideal choice for OEM customers.

Permanently leak-tight thanks to sophisticated design
The fully welded probe, made of stainless steel, works reliably thanks to IP68 ingress protection. A special cable design with integrated fibre mesh ensures effective strain relief. The potting of the cable inlet provides additional safety. In addition, a helium leak test is carried out for each individual instrument in our final inspection so that even the smallest leaks and hair-line cracks can be detected.

Low total cost of ownership
The submersible pressure sensor is maintenance-free and especially stable over the long term with an accuracy of 0.5 percent. This minimises failures, downtimes and the total cost of ownership.
