Level Indicator WIKA Model BNA

Applications

• Chemical, petrochemical, natural gas, offshore industries

• Shipbuilding, machine building

• Power generating equipment, power plants

• Pharmaceutical, food and beverage industries, process water and drinking water treatment

Special features

• Process- and procedure-specific production

• Operating limits:

  • Operating temperature: T = -60 ... +300 °C

  • Operating pressure: P = Vacuum to 40 bar

• Wide variety of different process connections

• Mounting of level sensors and magnetic switches possible as an option

• Explosion-protected versions

Description

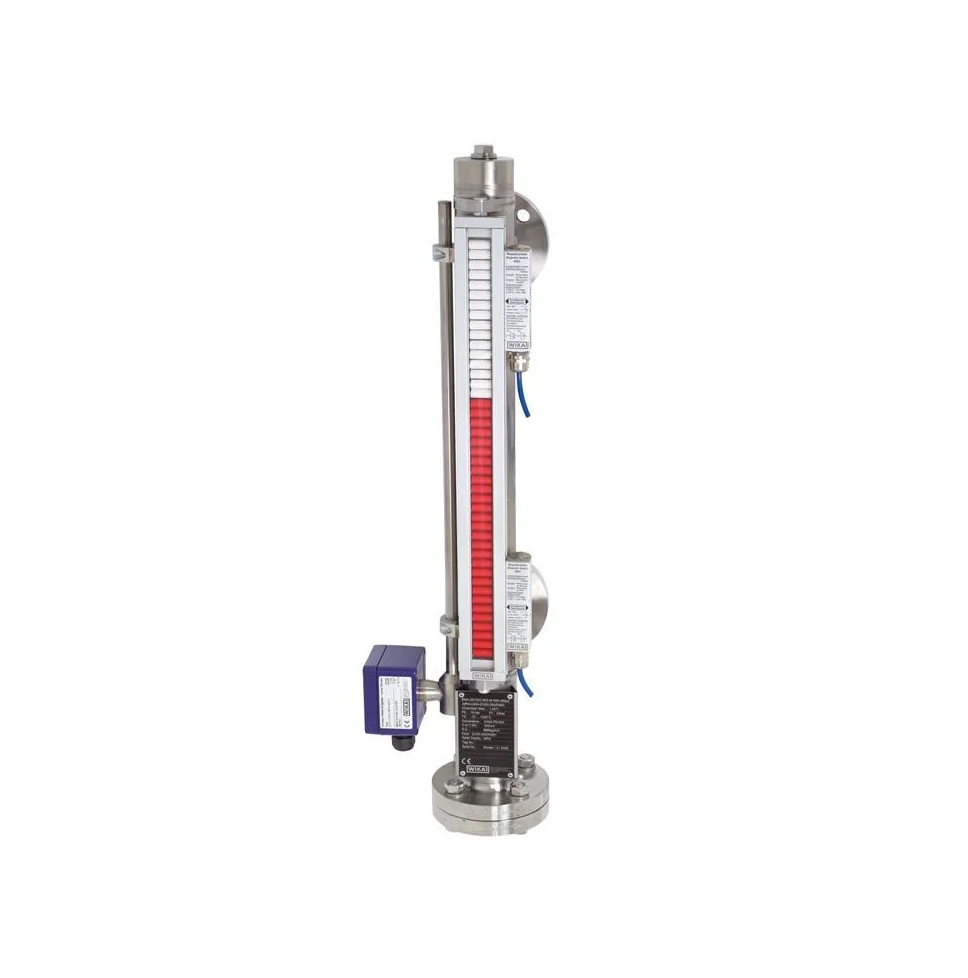

The model UTN top-mounted level indicator consists of a measuring chamber, a float with guide rod and a magnetic system. Mounting onto the vessel is made via appropriate process connections (flange, thread). The permanent magnetic system, which is connected to the float via a guide rod, transmits the liquid level measured in the vessel by the float, contact-free, to the magnetic display mounted to the outside of the measuring chamber.

In this magnetic display there are red/white plastic rollers or stainless steel flaps with bar magnets fitted at 10 mm intervals. The magnetic rollers or flaps are turned 180° through the walls of the measuring chamber. For an increasing level from white to red; for a falling level from red to white. Thus the magnetic display indicates the level of a vessel as a red column, without power supply.
