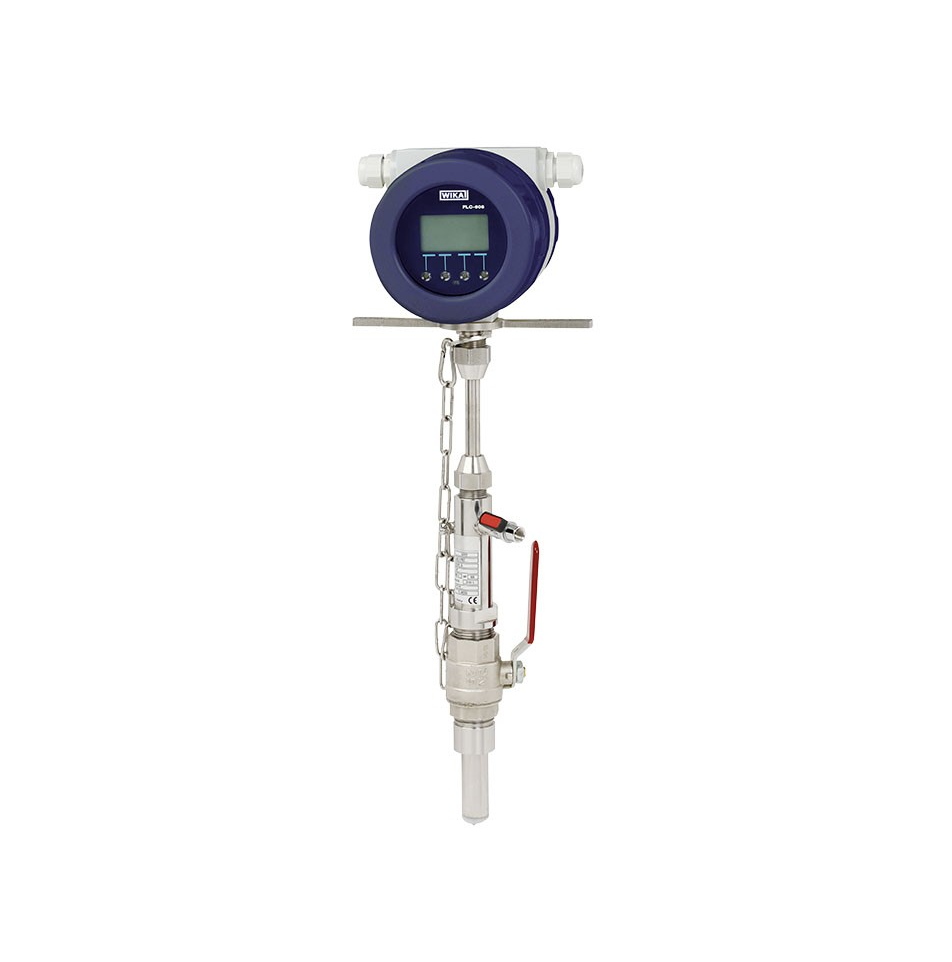

Flow meter WIKA Model FLC-1222

Applications

• Water network management

• Leakage detection systems

• Data acquisition and analysis

Special features

• Can be used as a mobile or permanent measuring instrument, thanks to “hot tapping” (drilling of pipelines under pressure)

• Pressure gauge connection available

• Testing of flow meters on-site

• No moving parts and no pressure loss

Description

The model FLC-1222 flow meter is a cost-saving solution for flow monitoring. The possibility of a “hot tapping” installation, without having to empty the flow tube, enables the compact measuring instrument to be installed quickly and easily. The instrument can be used as a mobile or as a permanent solution.

The flow meter is available in three sizes and is suitable for use in pipe sizes of DN 50 to DN 2600. Thus, a wide range of flow volumes and velocities can be measured, even in demanding applications.

The robust design, which requires no maintenance, enables a high-precision bi-directional measurement. Internal components are lined to protect them against external influences.

A WIKA signal converter, either attached directly to the instrument or separated from it (e.g. model FLC-608), detects the potential difference between the electrodes, processes the signal to calculate the flow and manages communication with the external control systems.
