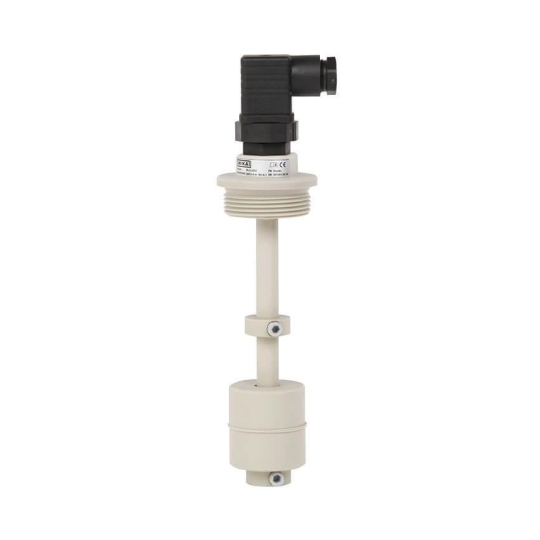

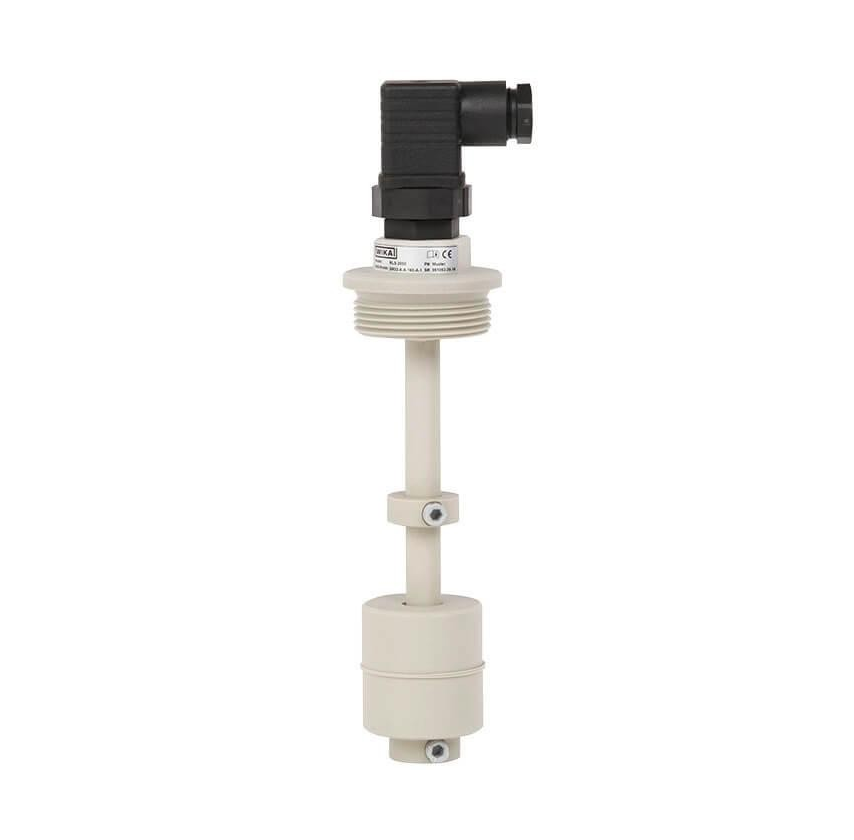

Float switch WIKA Model RLS-2000

Applications

• Level measurement of liquids in machine building

• Control and monitoring tasks for critical media: Oil, corrosive liquids and aqueous media

Special features

• Highest reliability in aggressive media

• Optimum process safety thanks to SMD production

• Simple and fast installation

Description

The RLS-2000 is a reliable and inexpensive float switch made of high-quality plastic. It is particularly suited for measuring the levels of aggressive and corrosive media, such as bases and acids. Float switches are an ideal solution for cost-sensitive applications such as the monitoring of levels or overflow and dry-run protection.

The RLS-2000 detects the level by means of a permanent magnet and frictionless reed contacts at up to 4 defined switch points, without contact and thus free from wear. Integration as a limit level switch is simple, convenient and fast, because no adaptation or calibration is required during installation. Its robust design minimises service and maintenance costs.
