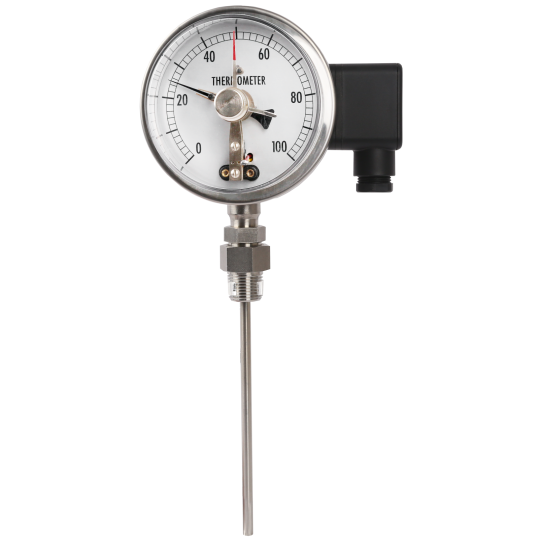

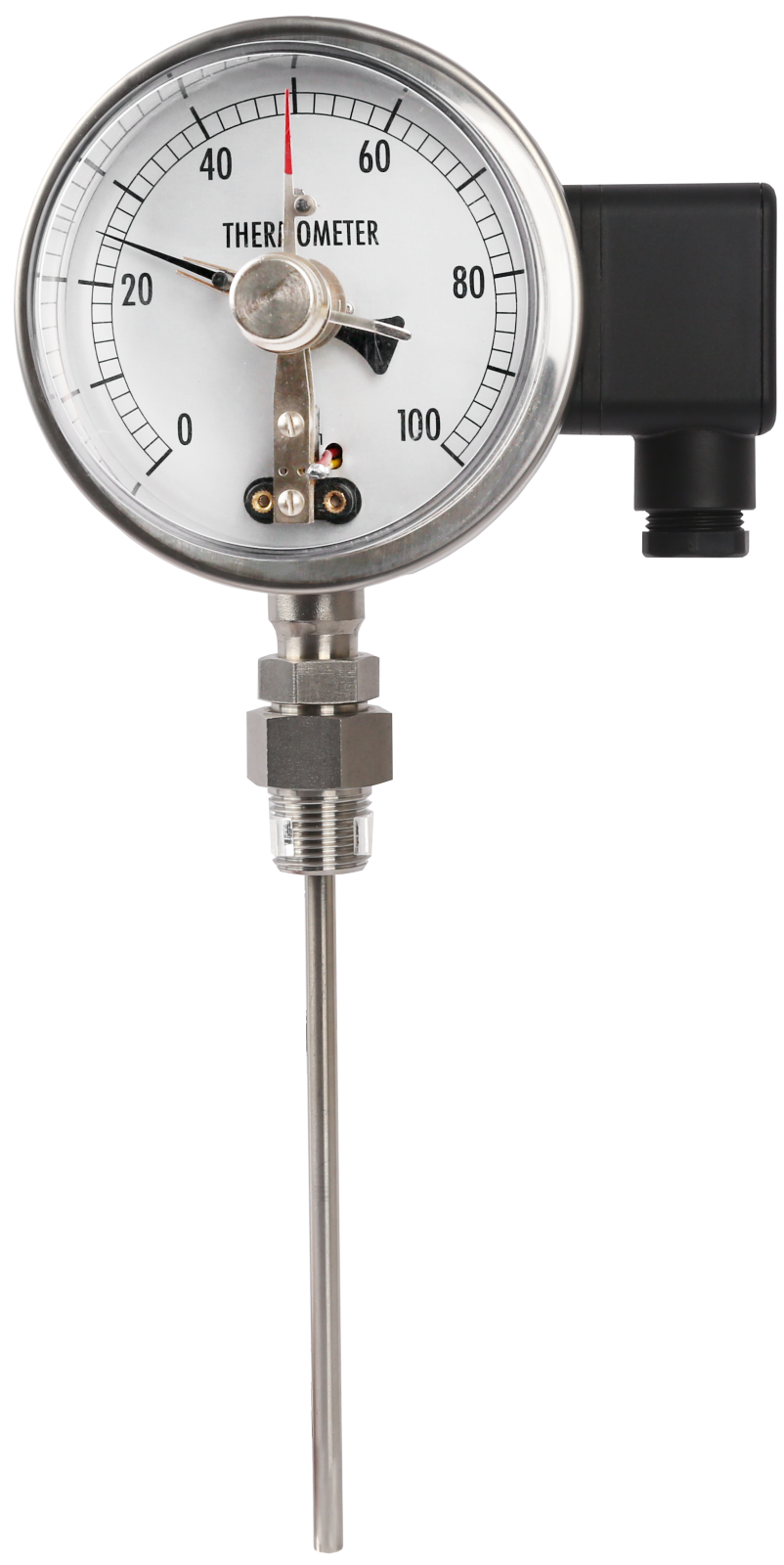

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T751, T752, T753, T754

Nominal diameter
100 mm

Accuracy
±2.0% of full scale

Temperature element
Coiled bimetal

Working range
Maximum scale value

Location of stem
Bottom connection, direct
Center back connection, direct

Case
304SS

Cover
304SS

Window
Acrylic

Dial
White aluminium with black graduation

Contacts
Maximum voltage : 250 V AC
Contact rating : AC 220 V, 0.25 A
DC 100 V, 0.5 A
With max. no of contact : 2 sets per gauge

Pointer
Black painted aluminium alloy

Stem
6.0, 6.4, 8.0 and 10.0 mm
304SS, 316SS and 316L SS

Stem, process connection
¼", ⅜", ½", ¾" PT, NPT and PF

Option
±1.0% of full scale
