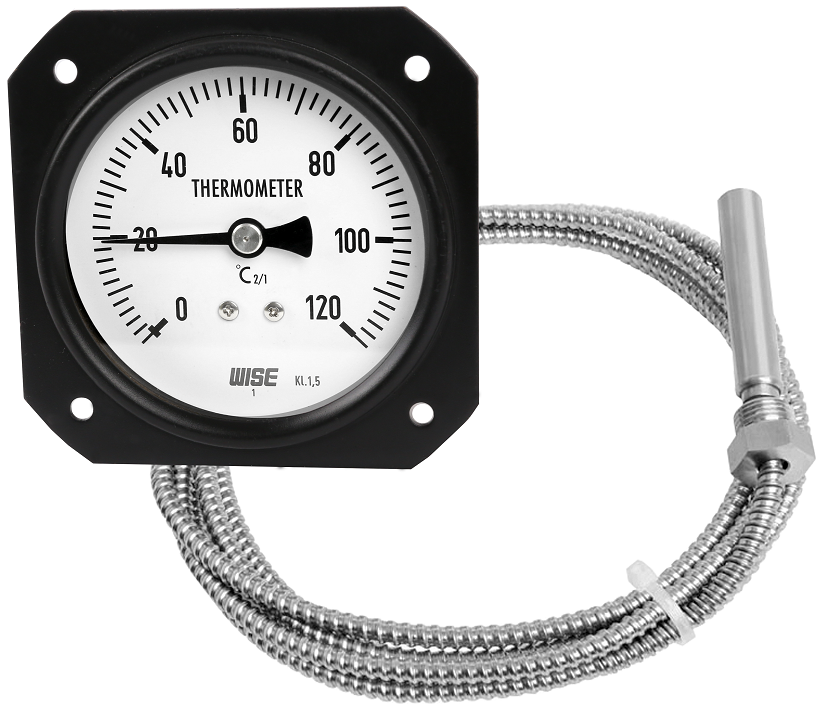

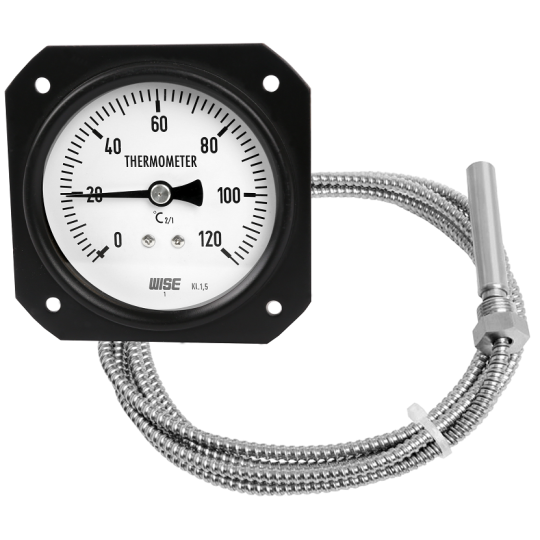

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T263

Nominal diameter
80 mm

Accuracy
±1.5% of full scale

Measuring system (SAMA class ⅢB)
Organic gas : 0 ~ 200°C

Working range
Maximum scale value

Location of stem and mounting
Certer back connection, flush, cover mounting

Case and cover
Black finished bronze

Capillary
Capillary : 1.6/0.2 mm, 316SS
Armored tube : 7.5/5.5 mm, 304SS

Window
Laminated safety glass

Dial
White aluminium with black graduation

Movement
Stainless steel
Damper vibration and pulsation

Pointer
Black painted aluminium alloy

Stem
8.0, 10.0 and 12.0 mm
316SS and 316L SS

Zero adjustment
Internal

Stem, process connection
⅜", ½", ¾" PT, NPT and PF

Option
±1.0% of full scale
