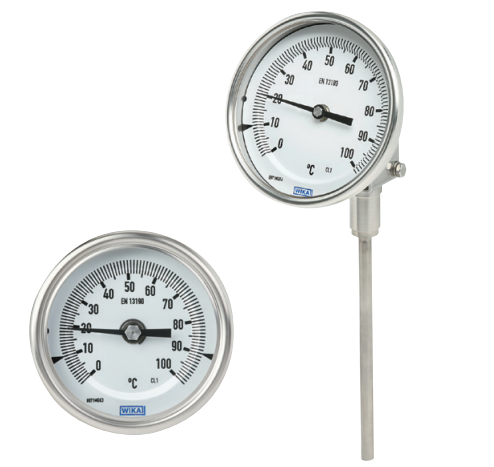

ĐỒNG HỒ ĐO NHIỆT ĐỘ WIKA TG54

Basic information

Standard

EN 13190

Nominal size in mm [in]

63 [2"]

80 [3"]

100 [4"]

160 [6"]

Window

Instrument glass

Laminated safety glass

Polycarbonate (shatterproof)

Connection location

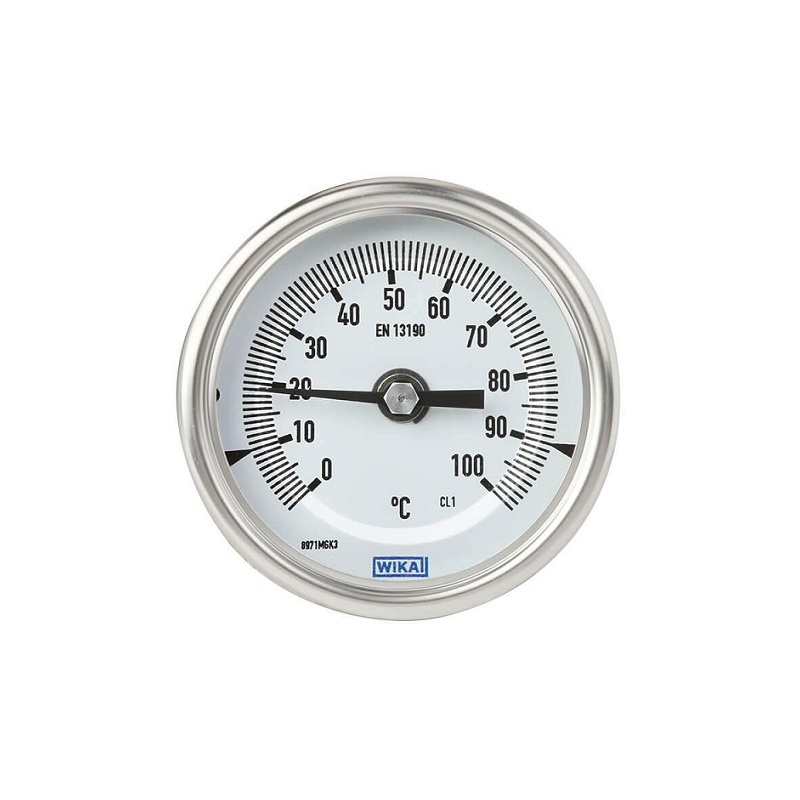

Back mount (axial)

Lower mount (radial)

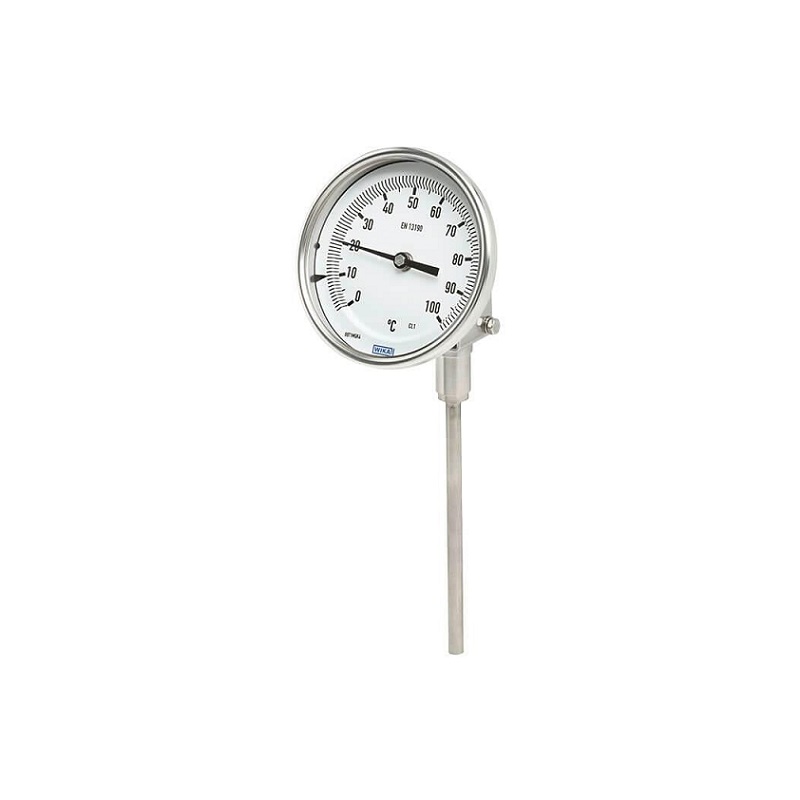

Back mount, adjustable stem and dial

Connection design → For drawings, see page 10

S Standard (male threaded connection)

1 Plain stem (without thread)

2 Male nut

3 Union nut

4 Compression fitting (sliding on stem)

4.1 Compression fitting with support tube sliding on stem

Versions

Standard version

Oil- and grease-free version

Silicone-oil-less version

Dampening, case filling

Without

With silicone oil case filling, up to max. 250 °C [482 °F] (at the probe)

Case, ring

Stainless steel 304

Stainless steel 316L

Elbow behind the case (only with lower mount)

Stainless steel 304

Stainless steel 316L

Measuring element

Type of measuring element

Bimetal coil

Nominal effective range

Continuous load (1 year): Measuring range (EN 13190)

Short time (max. 24 h): Scale range (EN 13190)

Accuracy

Class 1 per EN 13190
