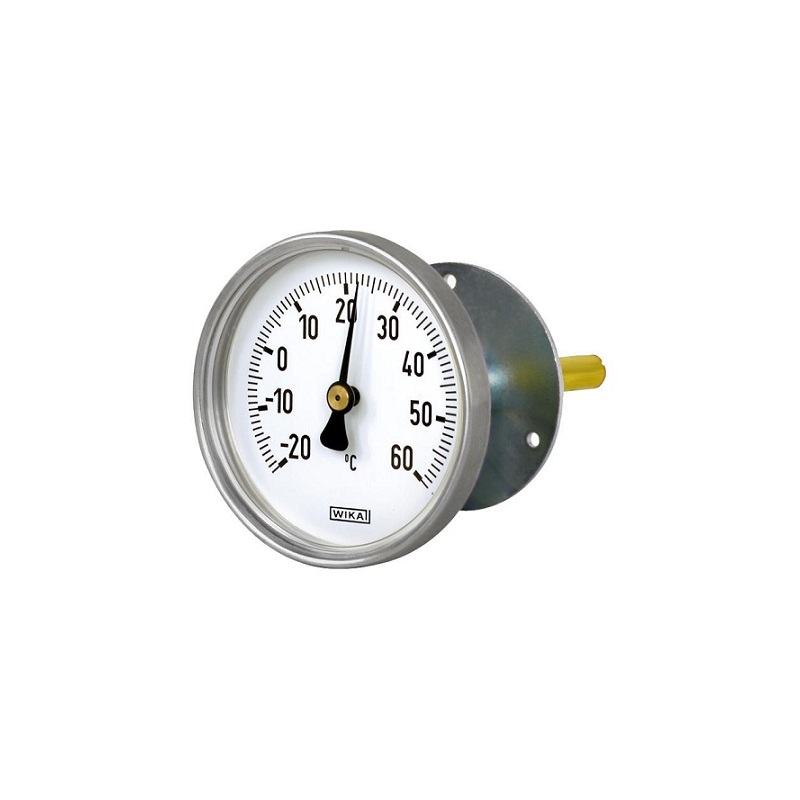

ĐỒNG HỒ ĐO NHIỆT ĐỘ WIKA A48

Measuring element

Bimetal coil

Nominal size in mm

63, 80, 100 and 160

Model NS Connection location

A48.10.063 NS 63: Back mount (BM), centre

A48.10.080 NS 80: Back mount (BM), centre

A48.10.100 NS 100: Back mount (BM), centre

A48.10.160 NS 160: Back mount (BM), centre

Scale ranges

Scale range in °C

-30 ... +50

-20 ... +60

-10 ... +50

0 ... 60

0 ... 80

0 ... 120

other scale ranges on request

Connection

Flange, steel zinc plated, adjustable on stem

- Standard: flange diameter d2 = 61 mm

- Option: flange diameter d2 = 50 mm

Stem

Insertion length l = 160, 200 and 300 mm

Ø 9 mm copper alloy

Minimum immersion depth lmin = approx. 60 mm

other insertion lengths on request

Accuracy class

Class 2 per EN 13190

Case

Aluminium

Dial

Aluminium, white, black lettering

Pointer

Aluminium, black

Window

Acrylic plastic

Zero adjustment

At bottom of stem
