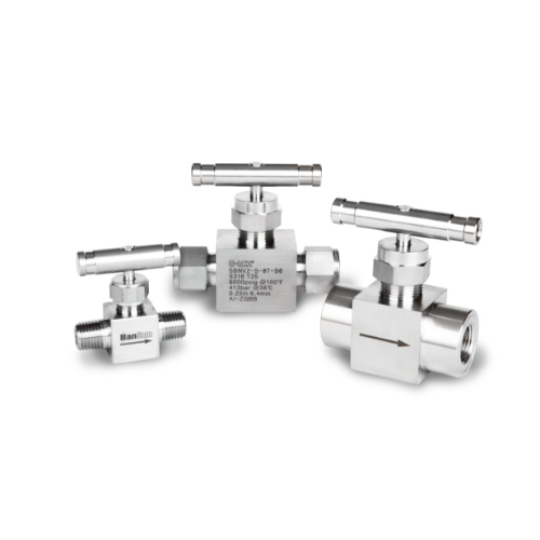

SINV Series

Features

- Compact design

- Low operating torques

- Panel mountable

- Straight and angle flow patterns

- Bar and round knob handle are available

- Three stem type are available

Specifications

- Temperature ratings:

* 316 Stainless steel with PTFE packing: -65 to 450°F (-53 to 232°C)

* 316 Stainless steel with PEEK packing: -65 to 600°F (-53 to 315°C)

* Brass: -65 to 400°F (-53 to 204°C)

* Alloy400 with PTFE packing: : -65 to 450°F (-53 to 232°C)

* Alloy400 with PEEK packing: : -65 to 500°F (-53 to 260°C)

* PCTFE stem tip: -65 to 200°F (-53 to 93°C)

* PTFE packing: -65 to 450°F (-53 to 232°C)

* PEEK packing: -65 to 600°F (-53 to 315°C)

- Orifice size: from 0.08 to 0.375 in. (2 to 9.5mm)

- Flow coeficients (Cv): 0.09 to 1.8

- End connection size: from 1/8 to 3/4 in,. (3mm to 18mm)

Testing

- Each and every valve is tested with nitrogen at 1000psig (69bar)

- Valve have max allowable leak rate of 0.1 cm³/min

- Shell testing is available upon request
