FLAP TYPE ASA V6 Series

TECHNICAL FEATURES
TEE EXECUTION
Length: 160 mm (200 mm with reduction joints)
Available DN: DN25-DN32-DN40-DN50
Connection: f/f 2”. On request it is available 1”; 1”1/4; 1”1/2 gas F connections reduction joints

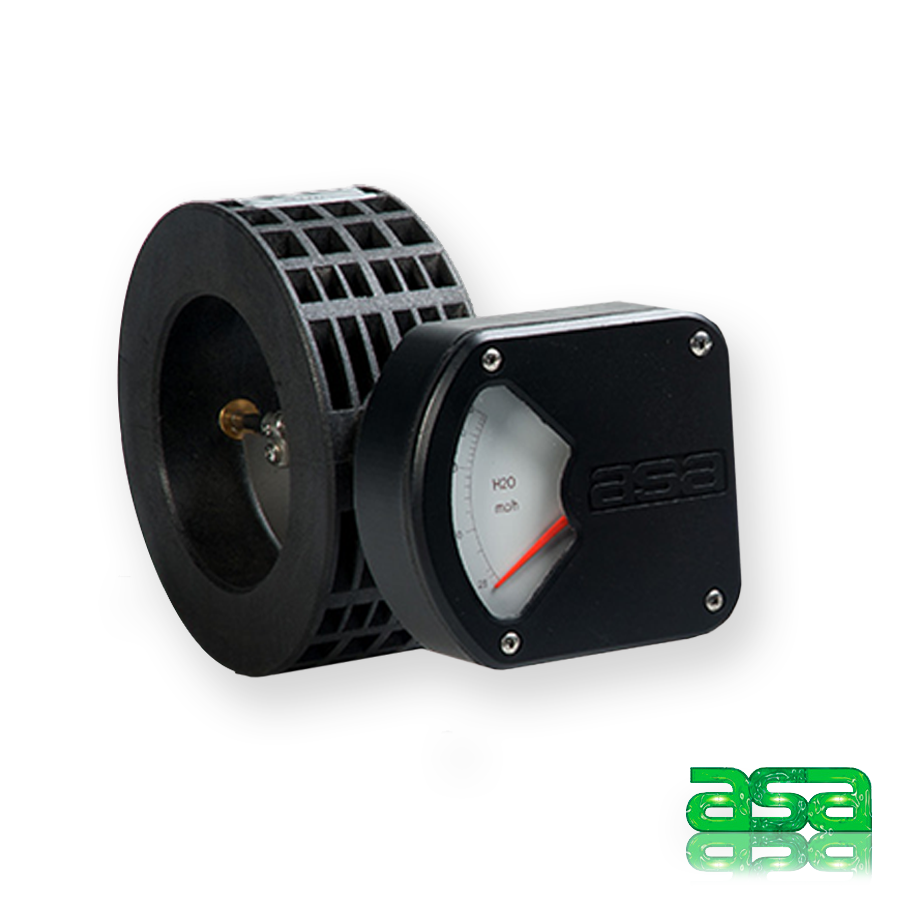

WAFER EXECUTION
Lenght: 52 mm
Avaiable sizes: DN65, DN80; suitable with flanges DN65 PN10/16; DN80
PN10/16 and ANSI 150/300 rating
Accuracy: ±5% f.s.v.; higher on request
Working temperature range: -10°C ÷ +60°C
Maximum working pressure: 16 bar g
Housing protection degree: IP65
Material in contact with fluid: PA 30%FV/PVC, PTFE, AISI316L, brass
Extension housing material: housing PA6 30%FV, sight glass PC; internal parts made of PVC, PA6 30%FV, aluminium and AISI316L
