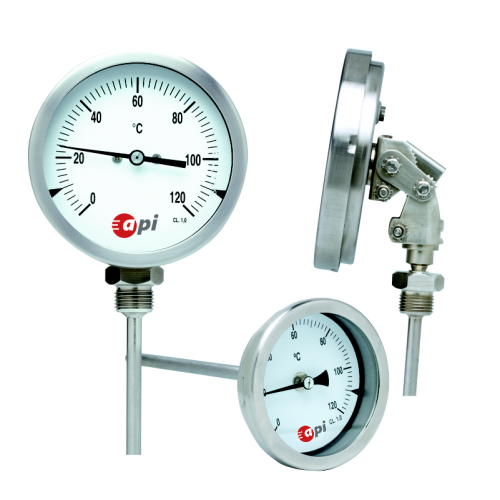

ĐỒNG HỒ ĐO NHIỆT ĐỘ API M3.01

PRODUCT SPECIFICATION
BACK VERSION [CODE : 1]
Dial size : DN63 / DN80 / DN100 / DN150
Range : -80...500°C
Mounting pattern : Direct, Back connection
Stem size & Stem length : Ø6 mm / 265 mm
Process connection type : Fixed connection
Process connection :½" NPT (M) /½” BSP (M)
BOTTOM VERSION [CODE : 2]
Dial size : DN63 / DN100 / DN150
Range : -80...500°C
Mounting pattern : Direct, Back connection
Stem size & Stem length : Ø6 mm / 250 mm
Process connection type : Adjustable connection
Process connection :½" NPT (M) /½” BSP (M)
EVERY ANGLE VERSION [CODE : 3]
Dial size : DN80 / DN100 / DN150
Range : -80...500°C
Mounting pattern : Every Angle, Back connection
Stem size & Stem length : Ø6 mm / 250 mm
Process connection type : Adjustable connection
Process connection :½" NPT (M) /½” BSP (M)
Standard option : External Zero adjustment
