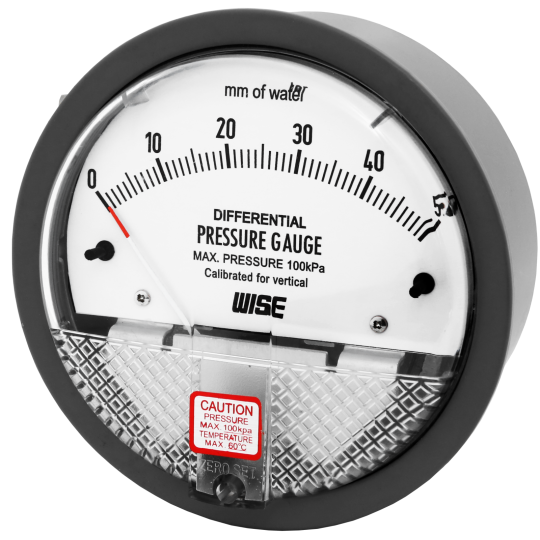

ĐỒNG HỒ ĐO CHÊNH ÁP WISE P880

Nominal diameter
100 mm

Accuracy
±2.0 % of full scale
-5 ~ 5, -25 ~ 25 and 0 ~ 10 mm: ±3.0 % of full scale
0 ~ 3000 mm: ±4.0 % of full scale

Scale range (kPa)
-0.25 to 0.25 kPa, 0~50 kPa

Working pressure
Steady pressure: 75 % of full scale
Over pressure protection: 100 kPa

Working temperature
Ambient: -10 ~ 60 °C

Temperature effect
Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±1.0 % per 10 ℃ of full scale

Pressure connection

⅛" NPT(F)

Case and cover
Gray painted aluminium die casting

Window
Acrylic resin

Element (Wetted parts)
Silicone rubber

Dial
White aluminium with black graduations

Pointer
Black painted aluminium alloy
