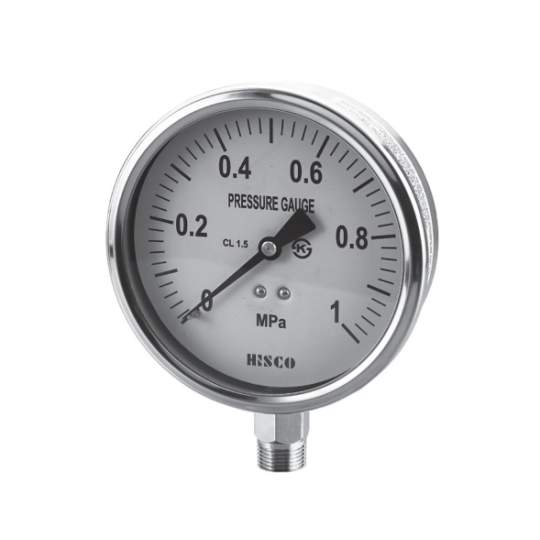

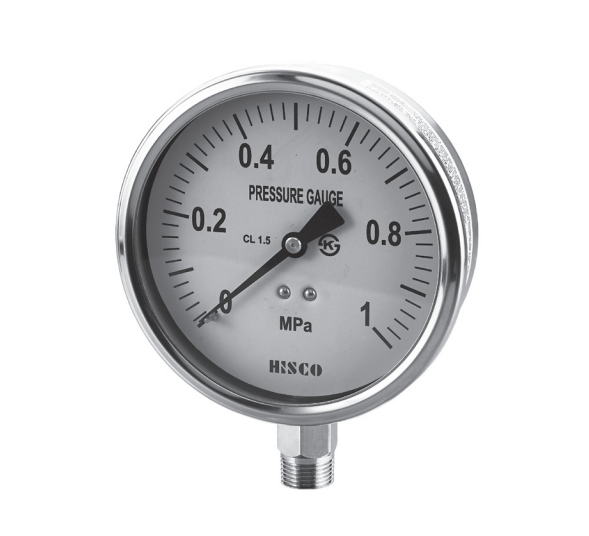

ĐỒNG HỒ ĐO ÁP SUẤT HISCO 201P

Standard Specification Overview
Dial Size
40mm (1.5”), 60mm (2.5”), 75mm (3”), 100mm (4”)
Reference Accuracy
40mm : ±3.0% of Full Scale
60mm, 75mm, 100mm : ± 1.5% of Full Scale
Scale Ranges
40mm : 0~0.2 to 0~3.5 MPa
60mm, 75mm : Vacuum, Compound & 0 ~ 0.1 to 0 ~ 50 MPa
100mm : Vacuum, Compound & 0 ~ 0.1 to 0 ~ 50 MPa
Standard Process Connection
40mm : PT (“R” in ISO) 1/8”
60mm : PT (“R” in ISO) 1/4”
75mm & 100mm : PT (“R” in ISO) 3/8”
Material
Case

304 SS
Ring (Cover)

304 SS
Window

Glass(40 &100mm) Safety Glass(60, 75mm)
Pointer

Aluminum Alloy, Black Painted
Connection

Chrome Plated Brass
Element (Bourdon Tube)

Brass
Movement

Brass
Dial Plate

White Aluminum with Black Graduations
Ring Type
Crimped
Degree of Protection
40mm : IP44
60mm, 75mm, 100mm : IP65
Optional Extra
· Test Report by Manufacturer
· Test Report by KOLAS (ILAC-MRA)
· Cleaning Service (USE NO OIL)
