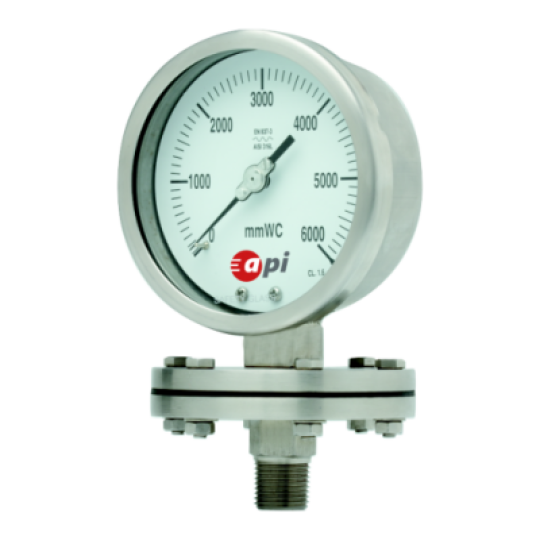

ĐỒNG HỒ ĐO ÁP SUẤT DẠNG MÀNG API M1.06

PRODUCT SPECIFICATION
STANDARD VERSION [CODE : 1]
Dial size: DN100 / DN150
Range: -250...0...+6000 mm WC & -1...0...+25 bar
Mounting pattern: Direct, Bottom connection
Process connection: ½" NPT (M) /½” BSP (M)
Ingress protection: IP 67
Execution: Dry but fillable
Case & Ring material: AISI 304 (Bayonet type)
Diaphragm: AISI 316L
Shank: AISI 316L (Shank welded directly to case)
Movement mechanism: AISI 304
Dial: Aluminum, black graduation on white background
Pointer: Micro-zero adjustable, aluminum, black powder
coated
Gaskets, Blow off disc & filling plug: Neoprene
Window: Shatterproof safety glass
LIQUID FILLED VERSION (GLYCERIN)[CODE : 2]
Ambient temperature: -20…+65°C

Dampening liquid: Glycerin+Water Mix (30+70)

Glycerin 99.7

MAIN FEATURES
All SS measuring system
Socket-case, direct welded
Threaded / Flanged connection
Dry / Filled system
SUGGESTED APPLICATIONS
Liquid & gaseous mediums
Corrosive environments
Oil & Gas applications
Chemical & Petrochemical
Food & Beverages
Nuclear power plants
BASIC DESCRIPTION
Sensing element: Diaphragm
Accuracy: ±1.6 F.S.D.
Ambient temperature: -40…+65°C
Service temperature:100°C max
Steady pressure: Up to FS value
Fluctuating pressure: Up to 90 of FS value
Over-pressure: 1.1 x FS value
Top Chamber: AISI 304
Weld joints: TIG argon arc welding
