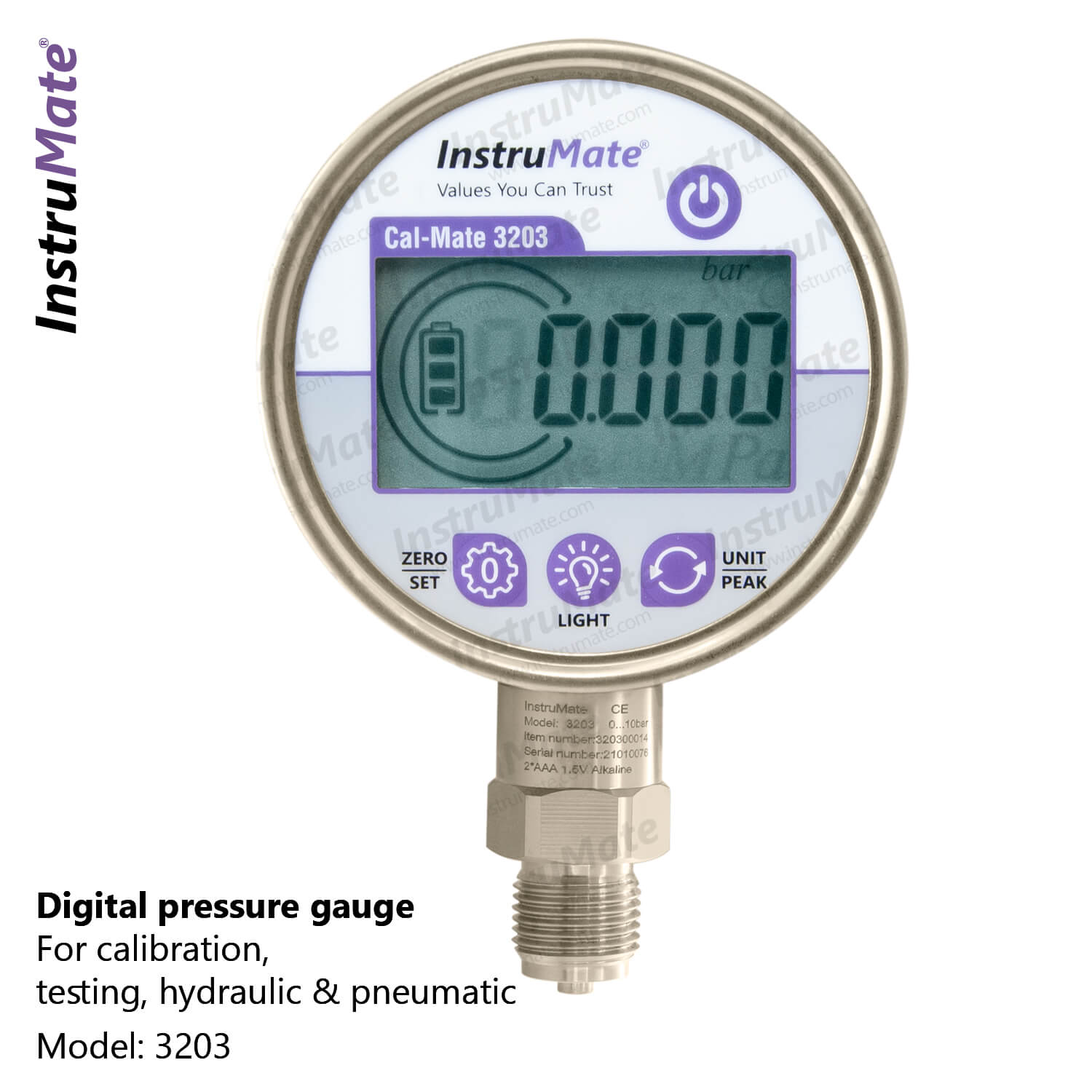

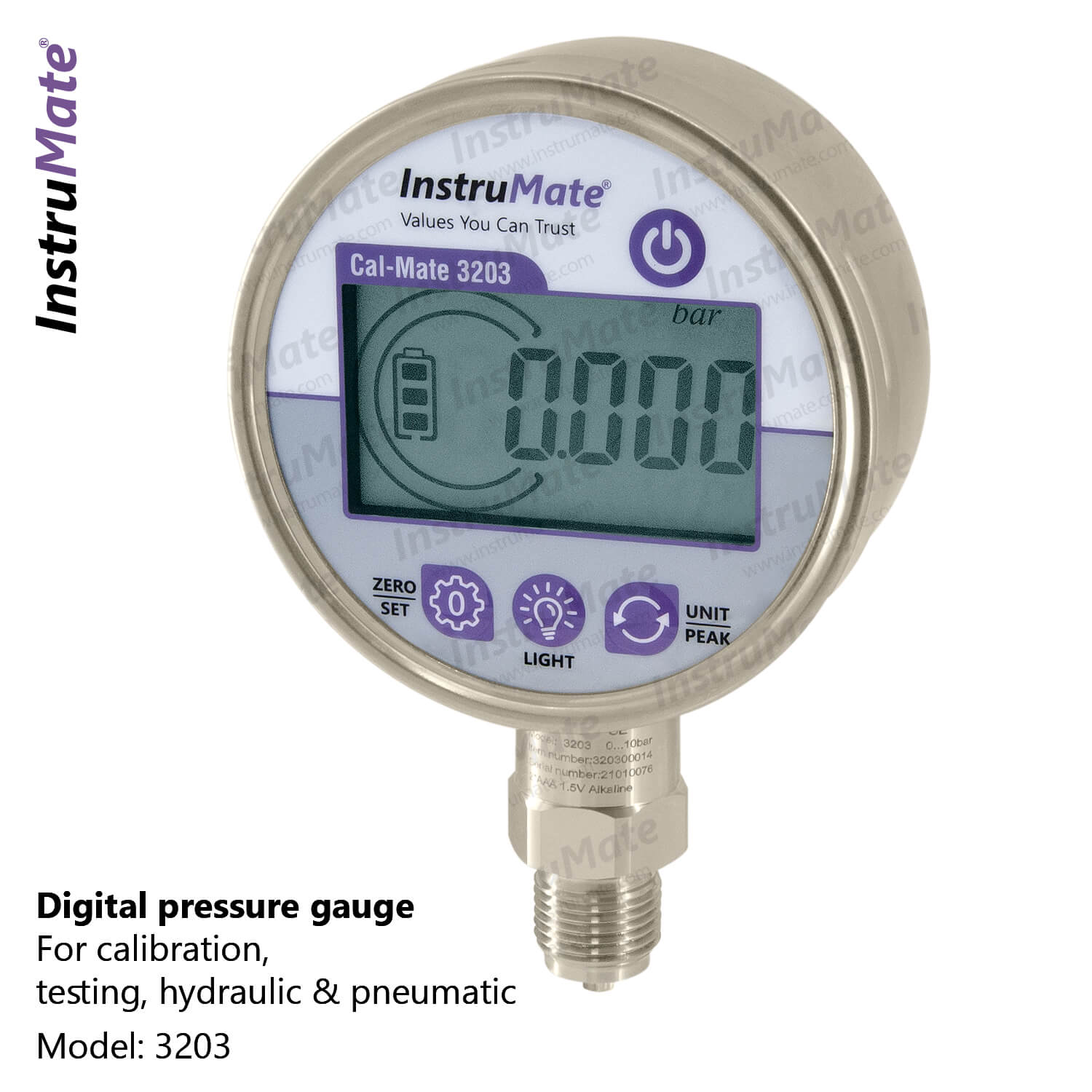

ĐỒNG HỒ ĐO ÁP SUẤT DẠNG ĐIỆN TỬ INSTRUMATE MODEL 3203

Cal-Mate 3203 is the essential digital pressure gauge for a calibration facility. It is designed to withstand ingress protection demanding  conditions and the accuracy of 0.25% ensures you can use it to calibrate all pressure gauges with 2.5, 1.6 and 1% accuracy class as explained in EN837-1.

There is a backlight function for places with poor lighting condition. The bar graph on the display indicates applied pressure in relation with the total nominal pressure of the instrument; a great assistant to avoid over-pressure.

You can retrieve the maximum value experienced by the instrument just by pushing the button. As easy as that will also be switching the units of pressure among a handful of common pressure units.

InstruMate 3203 is designed to have automatic power off for battery saving purpose. This industrial digital pressure gauge can be easily set to zero or tare function.

Applications

Calibration of pressure gauges

Test and measurement

Hydraulic and Pneumatic test kits

Special Features

Wide measuring range (from 0…1bar to 0…1000 bar)

Excellent accuracy for its price range (≤0.25%)

Battery Operation (2×1.5 AAA)

LCD display with 5 digits

Backlight

Unit conversion

Maximum memory (Peak record)

Bar graph display

IP6

Specification

Nominal Size in mm 100

Pressure Units: bar, psi, kpa, Mpa, pa, kgf/cm2, mmHg

Wetted Parts: SS316

Battery: 2 x 1.5V AAA, ~2200 hours

Accuracy: ±0.25% of span (ASME B40.7 Grade 3A)

Long-Term Stability: ≤ 0.1% of span

Display: 5 digit LC
