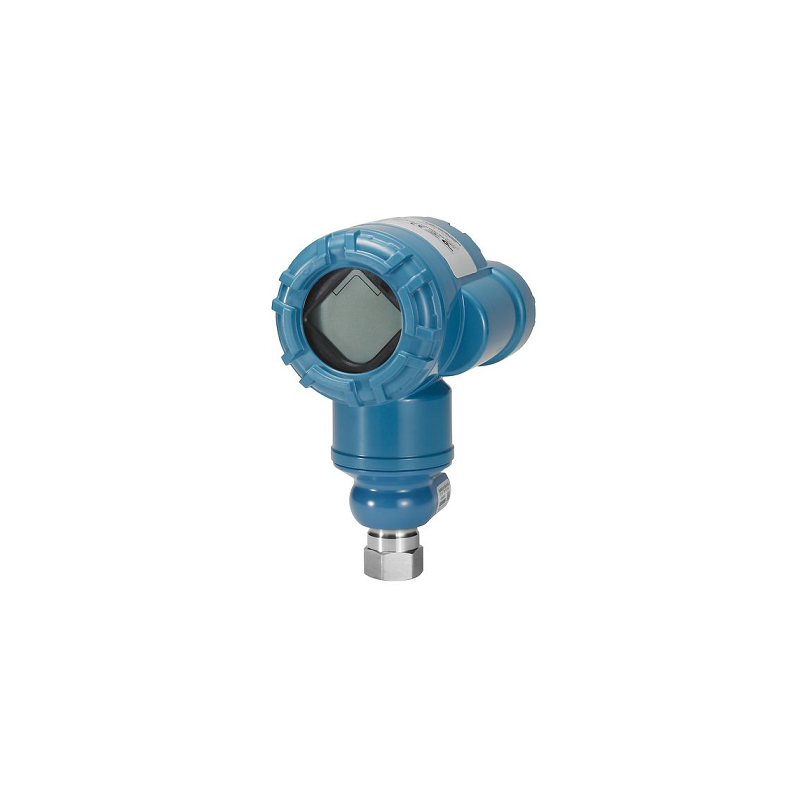

CẢM BIẾN ÁP SUẤT ROSEMOUNT 2051 Wireless In-Line

Specifications

Rangedown: Up To 100:1

Communication Protocol: WirelessHART®

Measurement Range: Up to 10000 psig (689,47 bar) Gage, Up to 10000 psia (689,47bar) Absolute

Process Wetted Material: 316L SST, Alloy C-276

Diagnostics: Basic Diagnostics

Certifications/Approvals: NSF, NACE®, hazardous location, see full specs for complete list of certifications

Update Rate: 1 sec. to 60 min., user selectable

Power Module Life: Up to 10-year life, field replaceable (order separately)

Wireless Range: Internal antenna (225 m)

Features

• WirelessHART® technology is secure, cost-effective and delivers >99% data reliability

• In-line gage and absolute pressure measurements support up to 10000 psi (689,47 bar) for pressure and level solutions

• Delivered fully assembled to manifolds, diaphragm seals or primary flow elements for straightforward installation

• SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

• Easy installation enables quick instrumentation of measurement points without the cost of wiring
